2 hp double phase pump

Vriha VMB2.0SPDPE8065 is an economical 2 HP single phase and two phase (double phase) centrifugal monoblock pump designed for water supply, agricultural irrigation, water transfer and domestic water applications. The main speciality of this ECO model is its ability to operate on both single phase and two phase (double phase) electrical supply, providing greater flexibility where different types of electrical supply are available. The VMB2.0SPDPE8065 operates within a 180-380 V voltage range at 50 Hz frequency and 2880 RPM. This Vriha 2 HP ECO monoblock pump features an 80x65 MM (3x2.5 Inch) pump size and a cast iron (CI) body. It is equipped with a mechanical seal, F Class insulation and IP44 protection. The pump has a duty head of 12 MTR and delivers 490 LPM at the duty point. Its performance range is 680 LPM at 8 MTR head, 600 LPM at 10 MTR, 490 LPM at 12 MTR, 360 LPM at 14 MTR and 210 LPM at 16 MTR. The maximum head is 18 MTR. The single phase and two phase (double phase) operating capability makes this ECO model different from a conventional single phase monoblock pump. It is suitable for agricultural farms, irrigation systems, field water supply, domestic water supply, tank filling, water transfer, garden irrigation and general water circulation. TECHNICAL SPECIFICATIONS Model: VMB2.0SPDPE8065 Pump Type: Centrifugal Monoblock Pump Power: 2.0 HP (1.5 kW) Phase: Single Phase & Two Phase (Double Phase) Voltage Range: 180-380 V Frequency: 50 Hz Speed: 2880 RPM Pump Size: 80x65 MM (3x2.5 Inch) Body Material: Cast Iron (CI) Duty Head: 12 MTR Flow at Duty: 490 LPM Maximum Head: 18 MTR Insulation Class: F Class Protection: IP44 Seal Type: Mechanical Seal PERFORMANCE 8 MTR – 680 LPM 10 MTR – 600 LPM 12 MTR – 490 LPM 14 MTR – 360 LPM 16 MTR – 210 LPM Maximum Head – 18 MTR APPLICATIONS Agricultural irrigation Farm water supply Field irrigation Water supply Water transfer Tank filling Domestic water supply Garden irrigation General water circulation VMB2.0SPDPE8065 is a Vriha ECO 2 HP monoblock pump designed to provide economical pumping with the flexibility of single phase and two phase (double phase) operation.

Vriha VMB2.0DP8065 is a 2 HP two phase (double phase) centrifugal monoblock pump designed for water supply, agricultural irrigation, water transfer and domestic water applications. This model is specifically designed for two phase (double phase) electrical operation and is suitable for applications where a two phase power supply is available. The Vriha VMB2.0DP8065 operates within a 250-420 V voltage range at 50 Hz frequency and 2880 RPM speed. The pump features an 80x65 MM (3x2.5 Inch) pump size and a cast iron (CI) body. It is equipped with a mechanical seal, F Class insulation and IP44 protection. This 2 HP two phase monoblock pump has a duty head of 12 MTR and delivers 540 LPM at the duty point. The pump performance is 730 LPM at 8 MTR head, 650 LPM at 10 MTR, 540 LPM at 12 MTR, 410 LPM at 14 MTR and 260 LPM at 16 MTR. The maximum head is 18 MTR. VMB2.0DP8065 is suitable for agricultural irrigation, farm water supply, field irrigation, water transfer, tank filling, domestic water supply, garden irrigation and general water circulation. Its 80x65 MM (3x2.5 Inch) pump size makes it suitable for applications requiring a higher-volume water passage and high water discharge. TECHNICAL SPECIFICATIONS Model: VMB2.0DP8065 Pump Type: Centrifugal Monoblock Pump Power: 2.0 HP (1.5 kW) Phase: Two Phase (Double Phase) Voltage Range: 250-420 V Frequency: 50 Hz Speed: 2880 RPM Pump Size: 80x65 MM (3x2.5 Inch) Body Material: Cast Iron (CI) Duty Head: 12 MTR Flow at Duty: 540 LPM Maximum Head: 18 MTR Insulation Class: F Class Protection: IP44 Seal Type: Mechanical Seal PERFORMANCE 8 MTR – 730 LPM 10 MTR – 650 LPM 12 MTR – 540 LPM 14 MTR – 410 LPM 16 MTR – 260 LPM Maximum Head – 18 MTR APPLICATIONS Agricultural irrigation Farm water supply Field irrigation Water supply Water transfer Tank filling Domestic water supply Garden irrigation General water circulation VMB2.0DP8065 is a Vriha 2 HP two phase (double phase) centrifugal monoblock pump designed for high-volume water pumping applications with a 250-420 V operating range and 80x65 MM (3x2.5 Inch) pump size.

Vriha VMB2.0SPDP8065 is a 2 HP single phase and two phase (double phase) centrifugal monoblock pump designed for reliable water supply, agricultural irrigation, water transfer and domestic water applications. Its key speciality is that the pump is designed to operate on both single phase and two phase (double phase) electrical supply, making it a practical choice for locations where the available power supply may vary. This Vriha 2 HP monoblock pump operates within a 160-380 V voltage range at 50 Hz and 2880 RPM. The pump has an 80x65 MM (3x2.5 Inch) pump size and a cast iron (CI) body. It uses a mechanical seal and is designed with F Class insulation and IP44 protection. The pump has a 12 MTR duty head and delivers 540 LPM at the duty point. Its performance range includes 730 LPM at 8 MTR head, 650 LPM at 10 MTR, 540 LPM at 12 MTR, 410 LPM at 14 MTR and 260 LPM at 16 MTR. The maximum head is 18 MTR. The single phase and two phase (double phase) operating capability makes VMB2.0SPDP8065 different from conventional single phase monoblock pumps. It can be considered for agricultural farms, irrigation systems, water transfer, domestic water supply, tank filling, field water supply and general water circulation applications where the electrical supply condition is not always the same. TECHNICAL SPECIFICATIONS Model: VMB2.0SPDP8065 Pump Type: Centrifugal Monoblock Pump Power: 2.0 HP (1.5 kW) Phase: Single Phase & Two Phase (Double Phase) Voltage Range: 160-380 V Frequency: 50 Hz Speed: 2880 RPM Pump Size: 80x65 MM (3x2.5 Inch) Body Material: Cast Iron (CI) Duty Head: 12 MTR Flow at Duty: 540 LPM Maximum Head: 18 MTR Insulation Class: F Class Protection: IP44 Seal Type: Mechanical Seal PERFORMANCE 8 MTR – 730 LPM 10 MTR – 650 LPM 12 MTR – 540 LPM 14 MTR – 410 LPM 16 MTR – 260 LPM Maximum Head – 18 MTR APPLICATIONS Agricultural irrigation Farm water supply Field irrigation Water supply Water transfer Tank filling Domestic water supply Garden irrigation General water circulation VMB2.0SPDP8065 is a Vriha 2 HP single phase and two phase (double phase) monoblock pump designed for applications requiring flexible electrical phase operation together with high-volume water pumping.

Vriha VMB2.0SPDPXX6550 is a special 2 HP (1.5 kW) centrifugal monoblock pump designed to operate on both single phase and two phase (double phase) electrical supply. This dual-phase operating capability gives the pump greater flexibility compared with conventional single-phase water pumps. With a wide 140–420 V voltage range, the Vriha 2 HP pump is designed for applications where electrical supply conditions can vary and a flexible pumping solution is required. The VMB2.0SPDPXX6550 operates at 50 Hz frequency and 2880 RPM speed. It features a 65x50 MM pump size and robust Cast Iron (CI) body for dependable water pumping applications. At the specified duty point, the pump delivers 360 LPM flow at an 18 MTR head. The maximum head is 24 MTR. The pump performance varies according to the operating head. It delivers approximately 630 LPM at 8 MTR head, 590 LPM at 10 MTR, 550 LPM at 12 MTR, 500 LPM at 14 MTR, 440 LPM at 16 MTR, 360 LPM at 18 MTR, 240 LPM at 20 MTR and 70 LPM at 22 MTR head. The maximum head is 24 MTR. Actual field performance may vary depending on voltage, pipeline diameter, pipeline length, suction conditions, installation arrangement and system resistance. Vriha VMB2.0SPDPXX6550 is equipped with F Class insulation, IP44 protection and a mechanical seal. Its centrifugal monoblock construction combines the pump and motor into a compact assembly, providing a practical solution for installation and routine maintenance. This special 2 HP pump is suitable for agricultural irrigation, farm water supply, domestic water supply, water transfer, overhead tank filling and general water pumping applications. It is particularly suitable for users searching for a 2 HP single phase and two phase pump, 2 HP double phase water pump, 140–420 V wide voltage pump, 2 HP centrifugal monoblock pump or 65x50 MM water pump. Model: VMB2.0SPDPXX6550 Power: 2 HP / 1.5 kW Phase: Single Phase & Two Phase (Double Phase) Voltage Range: 140–420 V Frequency: 50 Hz Speed: 2880 RPM Pump Size: 65x50 MM Body Material: Cast Iron (CI) Duty Head: 18 MTR Flow at Duty: 360 LPM Maximum Head: 24 MTR Insulation Class: F Class Protection: IP44 Seal Type: Mechanical Seal

Vriha VMB2.0SPDP6550 is a 2 HP (1.5 kW) high-flow centrifugal monoblock pump designed to operate on both single phase and two phase (double phase) electrical supply. This dual-phase compatibility is a key speciality of the Vriha VMB2.0SPDP6550, making it a practical choice for water pumping applications where the available electrical supply may vary. This 2 HP single phase and two phase monoblock pump operates in a voltage range of 180-380 V, at 50 Hz frequency and 2880 RPM speed. The pump has a 65x50 MM size and a durable cast-iron (CI) body. It delivers 360 LPM at a 16 metre duty head and develops a maximum head of 22 metres. The Vriha VMB2.0SPDP6550 is designed for high water discharge at moderate pumping heads. Its performance is 625 LPM at 6 metres head, 590 LPM at 8 metres, 540 LPM at 10 metres, 490 LPM at 12 metres, 440 LPM at 14 metres and 360 LPM at the 16 metre duty head. At 18 metres head, the discharge is 260 LPM, while at 20 metres head, the discharge is 150 LPM. The maximum head is 22 metres. With 2 HP power, 65x50 MM pump size and 360 LPM discharge at 16 metres head, this Vriha high-flow monoblock pump is suitable for applications requiring a higher quantity of water at a moderate head. The pump can be used for agricultural irrigation, farm water supply, domestic water supply, water transfer, overhead tank filling, underground tank to overhead tank transfer, residential water supply, garden irrigation and general water circulation. The special single phase and two phase (double phase) operating capability makes VMB2.0SPDP6550 different from conventional single-phase or three-phase monoblock pumps. It provides greater flexibility for installations where the electrical supply configuration is not the same as a standard single-phase system. The pump is designed with F Class insulation and IP44 protection and uses a mechanical seal. The cast-iron centrifugal pump construction, 2880 RPM speed, 180-380 V operating range and 65x50 MM pump size make this model suitable for regular water supply, irrigation and water transfer requirements. Vriha VMB2.0SPDP6550 is suitable for customers searching for a 2 HP monoblock pump, 2 HP single phase pump, 2 HP two phase pump, 2 HP double phase pump, 2 HP high-flow water pump, 2 HP centrifugal pump or 360 LPM water pump. Vriha Pump supplies centrifugal monoblock pumps for agricultural, domestic and general water pumping applications in Ahmedabad, Gujarat and across India. Select the pump according to required discharge, total head, pipe size, electrical supply and application conditions. TECHNICAL SPECIFICATIONS Model: VMB2.0SPDP6550 Pump Type: Centrifugal Monoblock Pump Power: 2.0 HP (1.5 kW) Phase: Single Phase & Two Phase Voltage Range: 180-380 V Frequency: 50 Hz Speed: 2880 RPM Pump Size: 65x50 MM Body Material: Cast Iron (CI) Duty Head: 16 MTR Flow at Duty: 360 LPM Maximum Head: 22 MTR Insulation Class: F Class Protection: IP44 Seal Type: Mechanical Seal PERFORMANCE 6 MTR – 625 LPM 8 MTR – 590 LPM 10 MTR – 540 LPM 12 MTR – 490 LPM 14 MTR – 440 LPM 16 MTR – 360 LPM 18 MTR – 260 LPM 20 MTR – 150 LPM Maximum Head – 22 MTR

Vriha VMB2.0SPDPXX5050 – 2 HP Single & Two Phase Wide Voltage Monoblock Pump Vriha VMB2.0SPDPXX5050 is a 2 HP (1.5 kW) centrifugal monoblock pump designed to operate on both single-phase and two-phase power supply, with a wide 140–420 V voltage range. It is developed for applications where flexible power-supply operation and a wide voltage range are important for reliable water pumping. WIDE VOLTAGE RANGE: 140–420 V The key advantage of this Vriha wide voltage range monoblock pump is its 140–420 V operating range. The pump is designed to work on both single-phase and two-phase power supply, also commonly referred to as double-phase power supply, providing greater flexibility for suitable pumping applications. TECHNICAL SPECIFICATIONS Model: VMB2.0SPDPXX5050 Pump Type: Centrifugal Monoblock Pump Power: 2 HP / 1.5 kW Phase: Single Phase & Two Phase Voltage Range: 140–420 V Frequency: 50 Hz Speed: 2880 RPM Pump Size: 50 × 50 mm Body Material: Cast Iron (CI) Duty Head: 18 Meter Flow at Duty: 240 LPM Maximum Head: 23 Meter Insulation Class: F Class Protection: IP44 Seal Type: Mechanical Seal HEAD-FLOW PERFORMANCE 8 Meter Head – 430 LPM 10 Meter Head – 390 LPM 12 Meter Head – 350 LPM 14 Meter Head – 315 LPM 16 Meter Head – 280 LPM 18 Meter Head – 240 LPM 20 Meter Head – 180 LPM 22 Meter Head – 90 LPM Duty Point: 240 LPM @ 18 Meter Head Maximum Head: 23 Meter APPLICATIONS Agricultural Irrigation Farm Water Transfer Garden Irrigation Water Supply Overhead Tank Filling Domestic Water Transfer General Water Transfer WHY CHOOSE VRIHA VMB2.0SPDPXX5050? Wide 140–420 V voltage range Single-phase & two-phase operation 2 HP / 1.5 kW motor 50 × 50 mm pump size Robust cast iron construction 2880 RPM operation 18 Meter duty head 240 LPM flow at duty F-Class insulation IP44 protection Mechanical seal construction The Vriha VMB2.0SPDPXX5050 is designed for customers looking for a 2 HP single & two phase wide voltage range monoblock pump that can deliver reliable water flow across practical pumping conditions. this model most suitable for agriculture because of this pump run in single phase as well as two phase. VRIHA MONOBLOCK PUMP Designed for dependable water delivery in agriculture, irrigation, water transfer, and domestic water-supply applications.

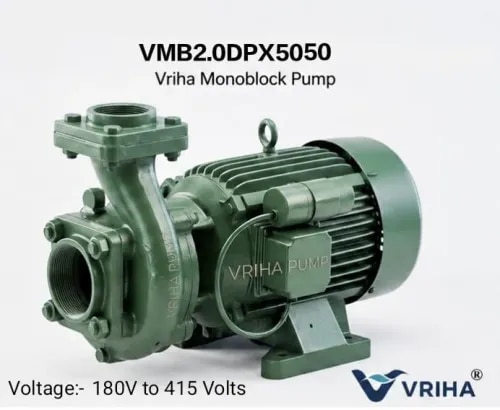

Vriha VMB2.0DPX5050 is a 2 HP (1.5 kW) centrifugal monoblock pump designed specifically for Two Phase power supply, also commonly referred to as Double Phase power supply. With a wide 180–415 V voltage range, this model is developed for customers looking for a flexible two-phase water pumping solution for agricultural, irrigation, water-supply and general water-transfer applications. WIDE 180–415 V VOLTAGE RANGE The major advantage of the Vriha VMB2.0DPX5050 is its wide 180–415 V operating range. This wide voltage capability provides greater flexibility for installations where the available electrical voltage can vary. TWO PHASE / DOUBLE PHASE POWER SUPPLY VMB2.0DPX5050 is designed for Two Phase power supply. Two Phase is also commonly referred to as Double Phase in the market. This makes the model suitable for customers specifically searching for a 2 HP Two Phase Pump or 2 HP Double Phase Water Pump. 2 HP CENTRIFUGAL MONOBLOCK PUMP The VMB2.0DPX5050 is rated at 2 HP (1.5 kW) and operates at 2880 RPM. It uses a 50×50 mm pump size and robust Cast-Iron (CI) construction for dependable pumping performance. RELIABLE HEAD-FLOW PERFORMANCE The hydraulic performance of VMB2.0DPX5050 follows the performance of the Vriha 2.0 HP SPLVX5050 model. This provides the same head-flow performance while offering a different electrical configuration with Two Phase / Double Phase operation and a 180–415 V voltage range. The VMB2.0DPX5050 is designed for practical water delivery across a range of operating heads. According to the Vriha performance chart, the pump delivers approximately 430 LPM at 8 m head, 390 LPM at 10 m, 350 LPM at 12 m, 315 LPM at 14 m, 280 LPM at 16 m, 240 LPM at 18 m, 190 LPM at 20 m, and 130 LPM at 22 m head. APPLICATIONS Vriha VMB2.0DPX5050 is suitable for agricultural irrigation, farm water transfer, garden irrigation, water supply, overhead tank filling, domestic water transfer and general-purpose water pumping applications where a compatible Two Phase power supply is available. WHY CHOOSE VRIHA VMB2.0DPX5050? • 2 HP / 1.5 kW power • Two Phase / Double Phase power supply • Wide 180–415 V voltage range • 2880 RPM operation • 50×50 mm pump size • Robust Cast-Iron construction • Same hydraulic performance as 2.0 HP SPLVX5050 • Suitable for irrigation and water-supply applications • Designed for flexible electrical operating conditions Vriha VMB2.0DPX5050 is designed for customers looking for a 2 HP Two Phase or Double Phase Wide Voltage Monoblock Pump with a 180–415 V operating range and dependable water delivery performance.

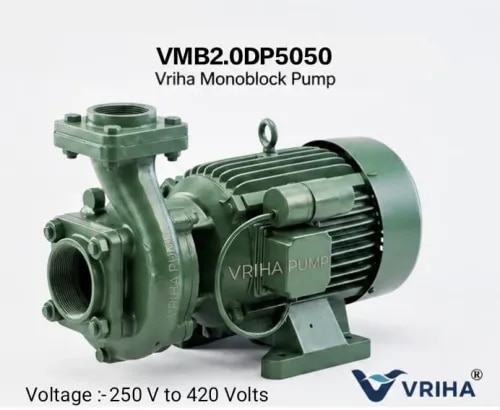

Vriha VMB2.0DP5050 is a 2 HP (1.5 kW) centrifugal monoblock pump specially designed for Two Phase, also commonly searched as Double Phase, power supply. With a wide 250–420 V voltage range, this Vriha pump is designed for water-pumping applications where a suitable two-phase electrical supply is available. WIDE 250–420 V VOLTAGE RANGE The key advantage of the VMB2.0DP5050 is its 250–420 V wide voltage operating range. This makes it a suitable choice for customers looking for a 2 HP wide voltage monoblock pump designed for two-phase or double-phase power supply. TWO PHASE / DOUBLE PHASE PUMP VMB2.0DP5050 is specifically designed for Two Phase power supply. The term Double Phase Pump is also commonly used by customers searching for this type of electrical configuration. Vriha provides this model for applications requiring a dedicated two-phase pumping solution. 2 HP CENTRIFUGAL MONOBLOCK PUMP The VMB2.0DP5050 delivers 2 HP (1.5 kW) power and operates at 2880 RPM. It features a 50×50 mm pump size and robust Cast-Iron (CI) construction for dependable water pumping applications. DUTY PERFORMANCE The specified duty point is 240 LPM at 18 Meter head, with a maximum head of 23 Meter. The performance is the same as the Vriha VMB2.0SPDP5050 model. HEAD-FLOW PERFORMANCE 8 Meter Head – 430 LPM 10 Meter Head – 390 LPM 12 Meter Head – 350 LPM 14 Meter Head – 315 LPM 16 Meter Head – 280 LPM 18 Meter Head – 240 LPM 20 Meter Head – 180 LPM 22 Meter Head – 90 LPM APPLICATIONS Vriha VMB2.0DP5050 is suitable for agricultural irrigation, farm water transfer, water supply, tank filling, domestic water transfer and general-purpose water pumping applications where a compatible two-phase power supply is available. WHY CHOOSE VMB2.0DP5050? • 2 HP / 1.5 kW power • Two Phase / Double Phase power supply • Wide 250–420 V voltage range • 2880 RPM operation • 50×50 mm pump size • Cast-Iron (CI) body • 18 Meter duty head • 240 LPM flow at duty • 23 Meter maximum head • Same hydraulic performance as VMB2.0SPDP5050 Vriha VMB2.0DP5050 is designed for customers looking for a 2 HP Two Phase or Double Phase Wide Voltage Monoblock Pump with dependable water delivery and a 250–420 V operating range.
