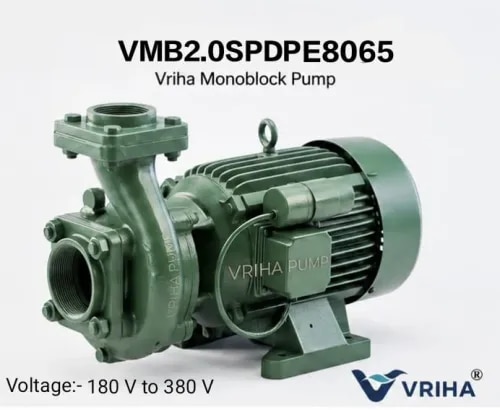

Vriha VMB2.0SPDPE8065 is an economical 2 HP single phase and two phase (double phase) centrifugal monoblock pump designed for water supply, agricultural irrigation, water transfer and domestic water applications. The main speciality of this ECO model is its ability to operate on both single phase and two phase (double phase) electrical supply, providing greater flexibility where different types of electrical supply are available. The VMB2.0SPDPE8065 operates within a 180-380 V voltage range at 50 Hz frequency and 2880 RPM. This Vriha 2 HP ECO monoblock pump features an 80x65 MM (3x2.5 Inch) pump size and a cast iron (CI) body. It is equipped with a mechanical seal, F Class insulation and IP44 protection. The pump has a duty head of 12 MTR and delivers 490 LPM at the duty point. Its performance range is 680 LPM at 8 MTR head, 600 LPM at 10 MTR, 490 LPM at 12 MTR, 360 LPM at 14 MTR and 210 LPM at 16 MTR. The maximum head is 18 MTR. The single phase and two phase (double phase) operating capability makes this ECO model different from a conventional single phase monoblock pump. It is suitable for agricultural farms, irrigation systems, field water supply, domestic water supply, tank filling, water transfer, garden irrigation and general water circulation. TECHNICAL SPECIFICATIONS Model: VMB2.0SPDPE8065 Pump Type: Centrifugal Monoblock Pump Power: 2.0 HP (1.5 kW) Phase: Single Phase & Two Phase (Double Phase) Voltage Range: 180-380 V Frequency: 50 Hz Speed: 2880 RPM Pump Size: 80x65 MM (3x2.5 Inch) Body Material: Cast Iron (CI) Duty Head: 12 MTR Flow at Duty: 490 LPM Maximum Head: 18 MTR Insulation Class: F Class Protection: IP44 Seal Type: Mechanical Seal PERFORMANCE 8 MTR – 680 LPM 10 MTR – 600 LPM 12 MTR – 490 LPM 14 MTR – 360 LPM 16 MTR – 210 LPM Maximum Head – 18 MTR APPLICATIONS Agricultural irrigation Farm water supply Field irrigation Water supply Water transfer Tank filling Domestic water supply Garden irrigation General water circulation VMB2.0SPDPE8065 is a Vriha ECO 2 HP monoblock pump designed to provide economical pumping with the flexibility of single phase and two phase (double phase) operation.

Vriha VMB2.0SPE8065 is an economical 2 HP single phase centrifugal monoblock pump designed for water supply, agricultural irrigation, water transfer and domestic water applications. This model is developed for users looking for a practical and economical 2 HP single phase water pump with an 80x65 MM (3x2.5 Inch) pump size. The VMB2.0SPE8065 operates on single phase power with a 170-240 V voltage range, 50 Hz frequency and 2880 RPM speed. Its 80x65 MM (3x2.5 Inch) pump size is suitable for applications requiring higher-volume water movement at low to moderate pumping heads. The pump has a cast iron (CI) body and is equipped with a mechanical seal. It features F Class insulation and IP44 protection. The duty point is 490 LPM at 12 MTR head, while the maximum head is 18 MTR. The pump performance includes 680 LPM at 8 MTR head, 600 LPM at 10 MTR, 490 LPM at 12 MTR, 360 LPM at 14 MTR and 210 LPM at 16 MTR. This performance range makes the VMB2.0SPE8065 suitable for different water supply and transfer requirements. As an economical single phase 2 HP monoblock pump, VMB2.0SPE8065 is suitable for agricultural farms, irrigation systems, field water supply, domestic water supply, tank filling, water transfer, garden irrigation and general water circulation. TECHNICAL SPECIFICATIONS Model: VMB2.0SPE8065 Pump Type: Centrifugal Monoblock Pump Power: 2.0 HP (1.5 kW) Phase: Single Phase Voltage Range: 170-240 V Frequency: 50 Hz Speed: 2880 RPM Pump Size: 80x65 MM (3x2.5 Inch) Body Material: Cast Iron (CI) Duty Head: 12 MTR Flow at Duty: 490 LPM Maximum Head: 18 MTR Insulation Class: F Class Protection: IP44 Seal Type: Mechanical Seal PERFORMANCE 8 MTR – 680 LPM 10 MTR – 600 LPM 12 MTR – 490 LPM 14 MTR – 360 LPM 16 MTR – 210 LPM Maximum Head – 18 MTR APPLICATIONS Agricultural irrigation Farm water supply Field irrigation Water supply Water transfer Tank filling Domestic water supply Garden irrigation General water circulation VMB2.0SPE8065 is a Vriha economical 2 HP single phase centrifugal monoblock pump designed to provide practical water pumping performance for agricultural, domestic and general water transfer applications.

Vriha VMB2.0TP8065 is a 2 HP three phase centrifugal monoblock pump designed for agricultural irrigation, water supply, water transfer and domestic water applications. This 2 HP three phase monoblock pump operates on a 350-415 V power supply at 50 Hz frequency and 2880 RPM speed. The VMB2.0TP8065 features an 80x65 MM (3x2.5 Inch) pump size and a cast iron (CI) pump body. It is equipped with a mechanical seal, F Class insulation and IP44 protection. The pump is designed for applications requiring high-volume water movement at low to moderate pumping heads. The duty point of this Vriha 2 HP three phase water pump is 540 LPM at 12 MTR head, with a maximum head of 18 MTR. Its performance range is 730 LPM at 8 MTR head, 650 LPM at 10 MTR, 540 LPM at 12 MTR, 410 LPM at 14 MTR and 260 LPM at 16 MTR. The 80x65 MM (3x2.5 Inch) pump size makes this model suitable for applications where a larger water passage and higher discharge are required. It can be used for agricultural irrigation, farm water supply, field irrigation, domestic water supply, tank filling, water transfer, garden irrigation and general water circulation. TECHNICAL SPECIFICATIONS Model: VMB2.0TP8065 Pump Type: Centrifugal Monoblock Pump Power: 2.0 HP (1.5 kW) Phase: Three Phase Voltage Range: 350-415 V Frequency: 50 Hz Speed: 2880 RPM Pump Size: 80x65 MM (3x2.5 Inch) Body Material: Cast Iron (CI) Duty Head: 12 MTR Flow at Duty: 540 LPM Maximum Head: 18 MTR Insulation Class: F Class Protection: IP44 Seal Type: Mechanical Seal PERFORMANCE 8 MTR – 730 LPM 10 MTR – 650 LPM 12 MTR – 540 LPM 14 MTR – 410 LPM 16 MTR – 260 LPM Maximum Head – 18 MTR APPLICATIONS Agricultural irrigation Farm water supply Field irrigation Water supply Water transfer Tank filling Domestic water supply Garden irrigation General water circulation
