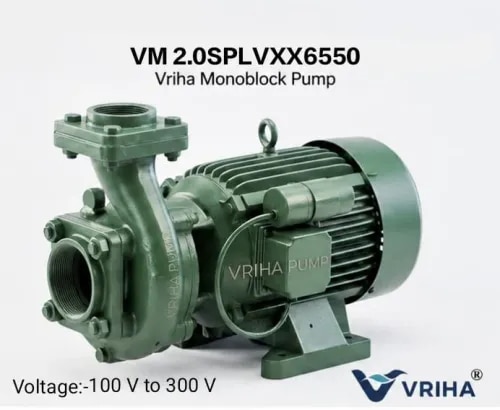

Vriha VMB2.0SPLVXX6550 is a special 2 HP (1.5 kW) single phase centrifugal monoblock pump designed for an exceptionally wide 100–300 V voltage range. This wide voltage capability is the key feature of the model, allowing the pump to operate across low-voltage, regular-voltage and high-voltage supply conditions within its specified operating range. It is designed for customers who require a 2 HP water pump for areas where electrical voltage fluctuations are a regular operating challenge. The VMB2.0SPLVXX6550 operates at 50 Hz frequency and 2880 RPM speed. It features a 65x50 MM pump size with a robust Cast Iron (CI) body. At the specified duty point, the pump delivers 360 LPM flow at an 18 MTR head. The maximum head is 24 MTR, providing a suitable solution for water supply, agricultural irrigation, water transfer and domestic water pumping applications. The pump performance varies according to the operating head. It delivers approximately 630 LPM at 8 MTR head, 590 LPM at 10 MTR, 550 LPM at 12 MTR, 500 LPM at 14 MTR, 440 LPM at 16 MTR, 360 LPM at 18 MTR, 240 LPM at 20 MTR and 70 LPM at 22 MTR head. The maximum head is 24 MTR. Actual field performance may vary depending on pipeline diameter, pipeline length, suction conditions, installation arrangement, voltage and system resistance. Vriha VMB2.0SPLVXX6550 is equipped with F Class insulation, IP44 protection and a mechanical seal. Its centrifugal monoblock construction provides a compact pump and motor assembly for convenient installation and routine maintenance. This 2 HP wide voltage single phase pump is suitable for agricultural farms, irrigation systems, domestic water supply, water transfer, overhead tank filling and general water pumping requirements. It is particularly suitable for users searching for a low voltage water pump, high voltage water pump, 100–300 V pump, wide voltage 2 HP pump, 2 HP single phase centrifugal pump or 65x50 MM monoblock pump. Model: VMB2.0SPLVXX6550 Power: 2 HP / 1.5 kW Phase: Single Phase Voltage Range: 100–300 V Frequency: 50 Hz Speed: 2880 RPM Pump Size: 65x50 MM Body Material: Cast Iron (CI) Duty Head: 18 MTR Flow at Duty: 360 LPM Maximum Head: 24 MTR Insulation Class: F Class Protection: IP44 Seal Type: Mechanical Seal
