Vriha 2 HP Single Phase Centrifugal Monoblock Pump – VMB2.0SP4040

Vriha VMB2.0SP4040 Pump Performance

The pump provides approximately 265 LPM at 14 metres head, 255 LPM at 16 metres, 240 LPM at 18 metre, 230 LPM at 20 metres,205 LPM at 22 metres and 190 LPM at 24 metres. Maximum head is approximately 30 metres.

Applications

The Vriha 2 HP centrifugal monoblock pump is suitable for:

* Domestic water supply

* Agricultural irrigation

* Water transfer

* Overhead tank filling

* Residential water pumping

* Small commercial water supply

* General-purpose water circulation

* Farm and agricultural water applications

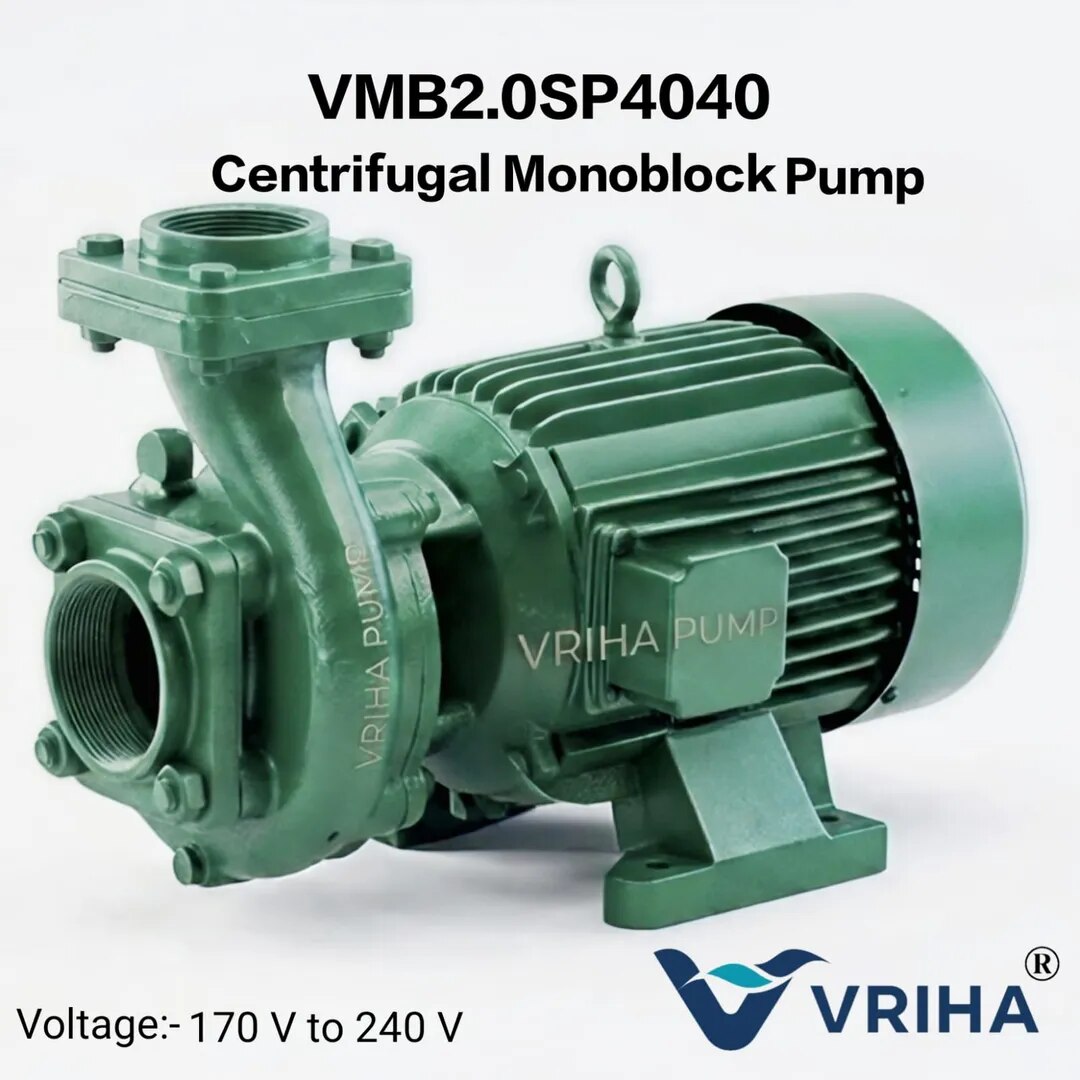

Vriha VMB2.0SP4040 – 2 HP Single Phase Centrifugal Monoblock Pump

The Vriha VMB2.0SP4040 is a 2 HP (1.5 kW) single phase centrifugal monoblock pump designed for reliable water supply, irrigation, water transfer and domestic water pumping applications. This 2 HP water pump is designed with a 40 x 40 mm pump size, cast iron pump body and 2880 RPM high-speed motor for efficient water pumping performance.

The VMB2.0SP4040 operates at 170-240 V, 50 Hz and is suitable for applications where the available voltage may vary. The pump delivers 190 LPM at a 24 metre duty head and provides a maximum head of 30 metres.

Vriha 2 HP Monoblock Pump Features

Power: 2 HP (1.5 kW)

Pump Type: Centrifugal Monoblock Pump

Phase: Single Phase and Two Phase

Voltage Range: 170-240 V

Frequency: 50 Hz

Speed: 2880 RPM

Pump Size: 40 x 40 MM

Body Material: Cast Iron (CI)

Duty Head: 24 MTR

Flow at Duty: 190 LPM

Maximum Head: 30 MTR

Insulation Class: F Class

Protection: IP44

Seal Type: Mechanical Seal

Vriha VMB2.0SP4040 Pump Performance

At 14 metre head, the discharge is approximately 265 LPM.

At 16 metre head, the discharge is approximately 255 LPM.

At 18 metre head, the discharge is approximately 240 LPM.

At 20 metre head, the discharge is approximately 230 LPM.

At 22 metre head, the discharge is approximately 205 LPM.

At 24 metre head, the discharge is approximately 190 LPM.

Maximum head is 30 metres.

Applications of 2 HP Centrifugal Monoblock Pump

The Vriha VMB2.0SP4040 2 HP monoblock pump is suitable for domestic water supply, agricultural irrigation, water transfer, overhead tank filling, residential water pumping, farm water supply and general-purpose water pumping applications.

2 HP Monoblock Pump for Ahmedabad and Gujarat

Vriha VMB2.0SP4040 is a 2 HP single phase centrifugal monoblock pump suitable for water pumping requirements in Ahmedabad, Gujarat and other parts of India. This pump can be used for domestic water supply, agricultural irrigation, water transfer and general water pumping applications.

Customers searching for a 2 HP monoblock pump in Ahmedabad, 2 HP water pump in Ahmedabad, centrifugal pump in Ahmedabad, single phase water pump in Gujarat, 2 HP monoblock pump in Gujarat or 2 HP water pump in India can identify the Vriha VMB2.0SP4040 by its model number, power, voltage range, pump size and performance specifications.

Why Choose Vriha VMB2.0SP4040

The Vriha VMB2.0SP4040 combines 2 HP power, 170-240 V voltage operation, 2880 RPM speed, 40 x 40 MM pump size and 30 metre maximum head in a centrifugal monoblock pump design. Its defined performance range makes it suitable for selecting a pump according to required head and water discharge.

Vriha VMB2.0SP4040 is a 2 HP single phase centrifugal monoblock water pump designed for water supply, irrigation, water transfer and domestic water pumping applications.
