Vriha 2 HP Single Phase Low voltage Monoblock Pump VMB2.0SPLVXX5050
Description

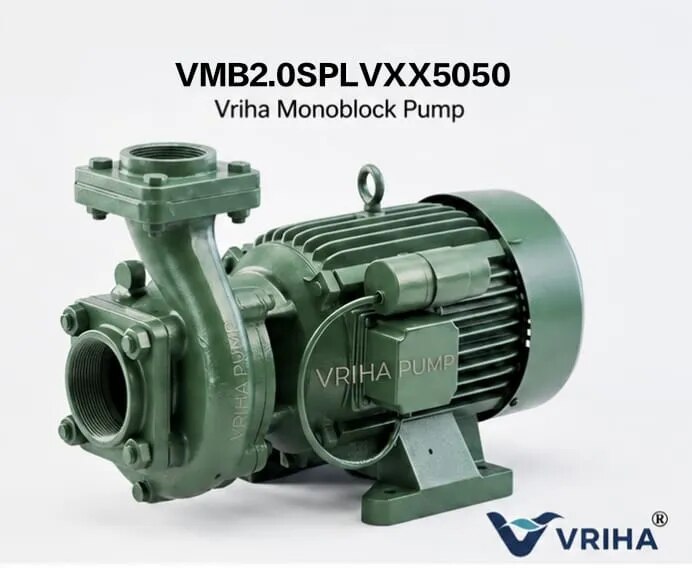

Vriha VMB2.0SPLVXX5050 – 2 HP Wide Voltage Range Monoblock Pump
Vriha VMB2.0SPLVXX5050 is a 2 HP (1.5 kW) single-phase centrifugal monoblock pump designed with a wide 100–300 V voltage range. It is developed for applications where voltage fluctuation and low-voltage conditions can affect conventional water pumps.
WIDE VOLTAGE RANGE: 100–300 V
The key advantage of this Vriha low-voltage monoblock pump is its wide 100–300 V voltage range. This makes the model suitable for water-pumping applications where the electrical supply may fluctuate significantly.

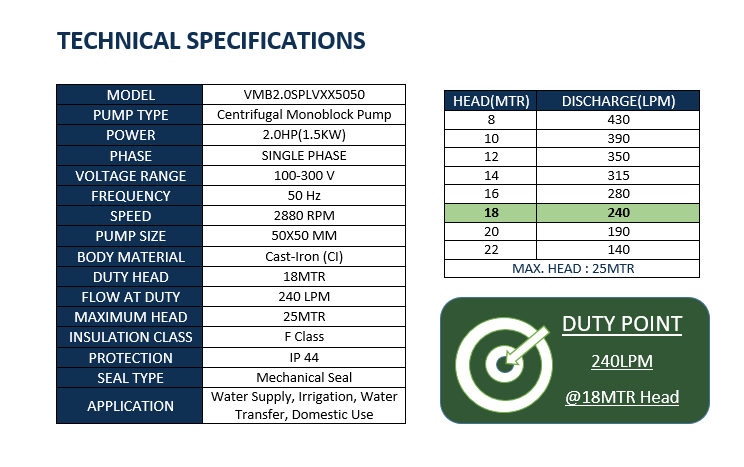

TECHNICAL SPECIFICATIONS
Model: VMB2.0SPLVXX5050
Pump Type: Centrifugal Monoblock Pump
Power: 2 HP / 1.5 kW
Phase: Single Phase
Voltage Range: 100–300 V
Frequency: 50 Hz
Speed: 2880 RPM
Pump Size: 50 × 50 mm
Body Material: Cast Iron (CI)
Duty Head: 18 Meter
Flow at Duty: 240 LPM
Maximum Head: 25 Meter
Insulation Class: F Class
Protection: IP44
Seal Type: Mechanical Seal
HEAD-FLOW PERFORMANCE
8 Meter Head – 430 LPM
10 Meter Head – 390 LPM
12 Meter Head – 350 LPM
14 Meter Head – 315 LPM
16 Meter Head – 280 LPM
18 Meter Head – 240 LPM
20 Meter Head – 190 LPM
22 Meter Head – 140 LPM
Duty Point: 240 LPM @ 18 Meter Head
Maximum Head: 25 Meter
APPLICATIONS
Agricultural Irrigation
Farm Water Transfer
Garden Irrigation
Water Supply
Overhead Tank Filling
Domestic Water Transfer
General Water Transfer
WHY CHOOSE VRIHA VMB2.0SPLVXX5050?
Wide 100–300 V voltage range
2 HP single-phase motor
50 × 50 mm pump size
Robust cast iron construction
2880 RPM operation
18 Meter duty head
240 LPM flow at duty
F-Class insulation
IP44 protection
Mechanical seal construction
The Vriha VMB2.0SPLVXX5050 is designed for customers looking for a 2 HP wide voltage range monoblock pump that can deliver reliable water flow across practical pumping conditions.
VRIHA MONOBLOCK PUMP
Designed for dependable water delivery in agriculture, irrigation, water transfer and domestic water-supply applications.
Specifications
| MODEL | VMB2.0SPLVXX5050 |
|---|---|
| SEAL TYPE | Mechanical Seal |
| APPLICATION | Water Supply, Irrigation, Water Transfer, Domestic Use |
| PROTECTION | IP 44 |
| MAXIMUM HEAD | 25MTR |
| INSULATION CLASS | F Class |
| BODY MATERIAL | Cast-Iron (CI) |
| INSULATION CLASS | F Class |
| PUMP SIZE | 50X50 MM |
| FLOW AT DUTY | 240 LPM |
| APPLICATION | Water Supply, Irrigation, Water Transfer, Domestic Use |
| PROTECTION | IP 44 |
| SPEED | 2880 RPM |
| DUTY HEAD | 18MTR |
| SEAL TYPE | Mechanical Seal |
| MAXIMUM HEAD | 25MTR |
| POWER | 2.0HP(1.5KW) |
| PUMP TYPE | Centrifugal Monoblock Pump |
| VOLTAGE RANGE | 100-300 V |
| PHASE | SINGLE PHASE |
| FREQUENCY | 50 Hz |
| BODY MATERIAL | Cast-Iron (CI) |
| SPEED | 2880 RPM |
| MAXIMUM HEAD | 25MTR |
| MAXIMUM HEAD | 25MTR |
| PUMP SIZE | 50X50 MM |
| PROTECTION | IP 44 |
| INSULATION CLASS | F Class |
| APPLICATION | Water Supply, Irrigation, Water Transfer, Domestic Use |
| SEAL TYPE | Mechanical Seal |
| FLOW AT DUTY | 240 LPM |
| DUTY HEAD | 18MTR |
| PHASE | SINGLE PHASE |
| VOLTAGE RANGE | 100-300 V |
| INSULATION CLASS | F Class |
| POWER | 2.0HP(1.5KW) |
| MAXIMUM HEAD | 25MTR |
| FREQUENCY | 50 Hz |
| APPLICATION | Water Supply, Irrigation, Water Transfer, Domestic Use |
| PUMP TYPE | Centrifugal Monoblock Pump |
| PROTECTION | IP 44 |
| APPLICATION | Water Supply, Irrigation, Water Transfer, Domestic Use |
| POWER | 2.0HP(1.5KW) |
| MAXIMUM HEAD | 25MTR |
| FREQUENCY | 50 Hz |
| PHASE | SINGLE PHASE |
| SEAL TYPE | Mechanical Seal |
| PROTECTION | IP 44 |
| PUMP TYPE | Centrifugal Monoblock Pump |
| VOLTAGE RANGE | 100-300 V |
| INSULATION CLASS | F Class |
| SEAL TYPE | Mechanical Seal |
