Vriha 2 HP Single & Two Phase Wide Voltage Centrifugal Monoblock Pump VMB2.0SPDP4040 160-440V

Vriha VMB2.0SPDP4040 is a 2 HP (1.5 kW) centrifugal monoblock pump designed for reliable water supply, irrigation, water transfer and domestic water pumping applications. This Vriha 2 HP monoblock pump operates at 2880 RPM and is designed with a wide voltage range of 160-440 V, making it suitable for applications where supply voltage may fluctuate.

Vriha VMB2.0SPDP4040 is a 2 HP (1.5 kW) wide-voltage centrifugal monoblock pump that can operate on both single-phase and two-phase (double-phase) power supply. The same pump is designed for flexible operation across a wide 160-440 V voltage range, making it a suitable 2 HP single-phase and two-phase water pump for domestic water supply, agricultural irrigation, water transfer and other general water pumping applications.

The VMB2.0SPDP4040 centrifugal monoblock pump is available for single-phase and two-phase applications and uses a 40x40 MM pump size with a durable cast-iron (CI) pump body. It delivers 190 LPM at a 24 metre duty head and can develop a maximum head of 30 metres.

The pump performance covers different operating heads according to water requirement. At 14 metres head, the discharge is 265 LPM; at 16 metres, 255 LPM; at 18 metres, 240 LPM; at 20 metres, 230 LPM; at 22 metres, 205 LPM; and at the 24 metre duty head, the discharge is 190 LPM. At 26 metres the discharge is 160 LPM and at 28 metres it is 130 LPM. Maximum head is 30 metres.

This 2 HP Vriha monoblock water pump is suitable for domestic water supply, agricultural irrigation, farm water transfer, overhead tank filling, water transfer between tanks and general water circulation requirements. Its centrifugal monoblock construction provides a compact pump and motor arrangement for convenient installation and regular water pumping applications.

Vriha VMB2.0SPDP4040 is designed with F Class insulation and IP44 protection. The pump uses a mechanical seal for dependable shaft sealing during operation. With its 2 HP motor, 160-440 V wide voltage operating range, 40x40 MM pump size, 24 metre duty head and 190 LPM duty discharge, it is suitable for customers looking for a 2 HP wide voltage monoblock pump in Ahmedabad, Gujarat and across India.

Vriha Pump manufactures and supplies centrifugal monoblock pumps for domestic, agricultural and industrial water pumping applications. For correct pump selection, customers should select the model according to required head, discharge, voltage condition, pipe size and application.

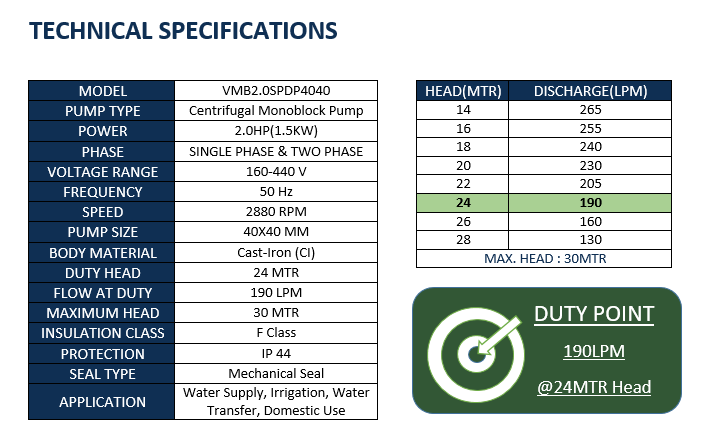

TECHNICAL HIGHLIGHTS

Model: VMB2.0SPDP4040

Pump Type: Centrifugal Monoblock Pump

Power: 2.0 HP (1.5 kW)

Phase: Single Phase & Two Phase

Voltage Range: 160-440 V

Frequency: 50 Hz

Speed: 2880 RPM

Pump Size: 40x40 MM

Body Material: Cast Iron (CI)

Duty Head: 24 MTR

Flow at Duty: 190 LPM

Maximum Head: 30 MTR

Insulation Class: F Class

Protection: IP44

Seal Type: Mechanical Seal

PERFORMANCE

14 MTR Head – 265 LPM

16 MTR Head – 255 LPM

18 MTR Head – 240 LPM

20 MTR Head – 230 LPM

22 MTR Head – 205 LPM

24 MTR Head – 190 LPM

26 MTR Head – 160 LPM

28 MTR Head – 130 LPM

Maximum Head – 30 MTR

APPLICATIONS

Water Supply

Agricultural Irrigation

Farm Water Pumping

Water Transfer

Domestic Water Supply

Overhead Tank Filling

Underground Tank to Overhead Tank

Water Transfer Between Tanks

General Water Circulation

Residential Water Pumping
