Vriha 2 HP Single & Two Phase Wide Voltage Monoblock Pump – 180–380 V | VMB2.0SPDP5050

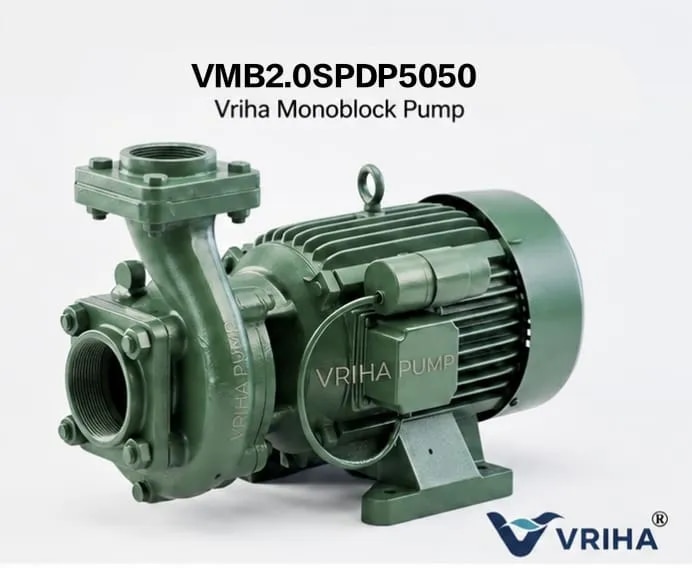

Vriha VMB2.0SPDP5050 is a 2 HP (1.5 kW) centrifugal monoblock pump designed for reliable water pumping with flexible electrical operation. The pump supports SINGLE-PHASE & TWO-PHASE operation and is designed for a wide 180–380 V voltage range, making it a practical choice for locations where the available electrical supply can vary.

WIDE 180–380 V VOLTAGE RANGE

The key advantage of the Vriha VMB2.0SPDP5050 is its wide 180–380 V voltage range. This model is designed for applications requiring flexible operation across a broad voltage range.

SINGLE-PHASE & TWO-PHASE OPERATION

VMB2.0SPDP5050 is specified for SINGLE-PHASE & TWO-PHASE operation, providing greater electrical supply flexibility for suitable installations.

2 HP CENTRIFUGAL MONOBLOCK PUMP

The pump delivers 2.0 HP (1.5 kW) power and operates at 2880 RPM. It features a robust cast-iron (CI) body, a 50×50 mm pump size, F-class insulation, IP44 protection, and a mechanical seal.

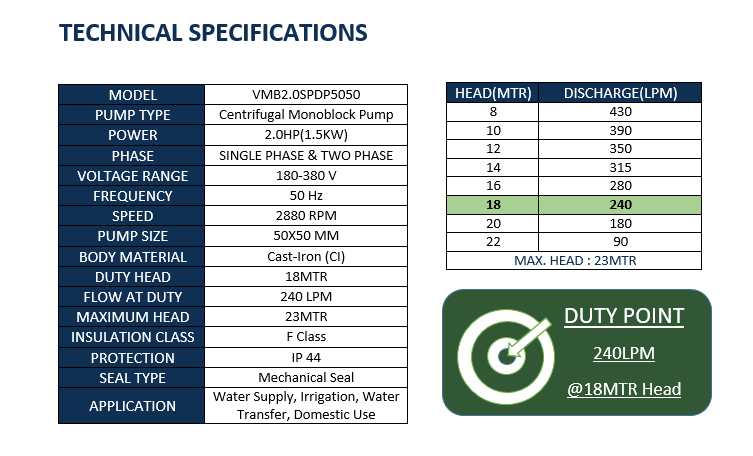

DUTY PERFORMANCE

The specified duty point is 240 LPM at an 18-meter head. The performance table provides approximately 430 LPM at an 8-meter head, 390 LPM at 10 meters, 350 LPM at 12 meters, 315 LPM at 14 meters, 280 LPM at 16 meters, 240 LPM at 18 meters, 180 LPM at 20 meters, and 90 LPM at a 22-meter head. Maximum head is 23 meters.

APPLICATIONS

Vriha VMB2.0SPDP5050 is suitable for water supply, agricultural irrigation, water transfer, and domestic water-use applications.

WHY CHOOSE VRIHA VMB2.0SPDP5050?

• 2.0 HP / 1.5 kW power

• Single-phase & two-phase operation

• Wide 180–380 V voltage range

• 2880 RPM speed

• 50×50 mm pump size

• Robust Cast-Iron (CI) body

• 18-meter duty head

• 240 LPM flow at duty

• 23-meter maximum head

• F Class insulation

• IP44 protection

• Mechanical seal

The Vriha VMB2.0SPDP5050 is designed for customers looking for a 2 HP wide voltage range monoblock pump with flexible electrical operation and dependable water delivery.
