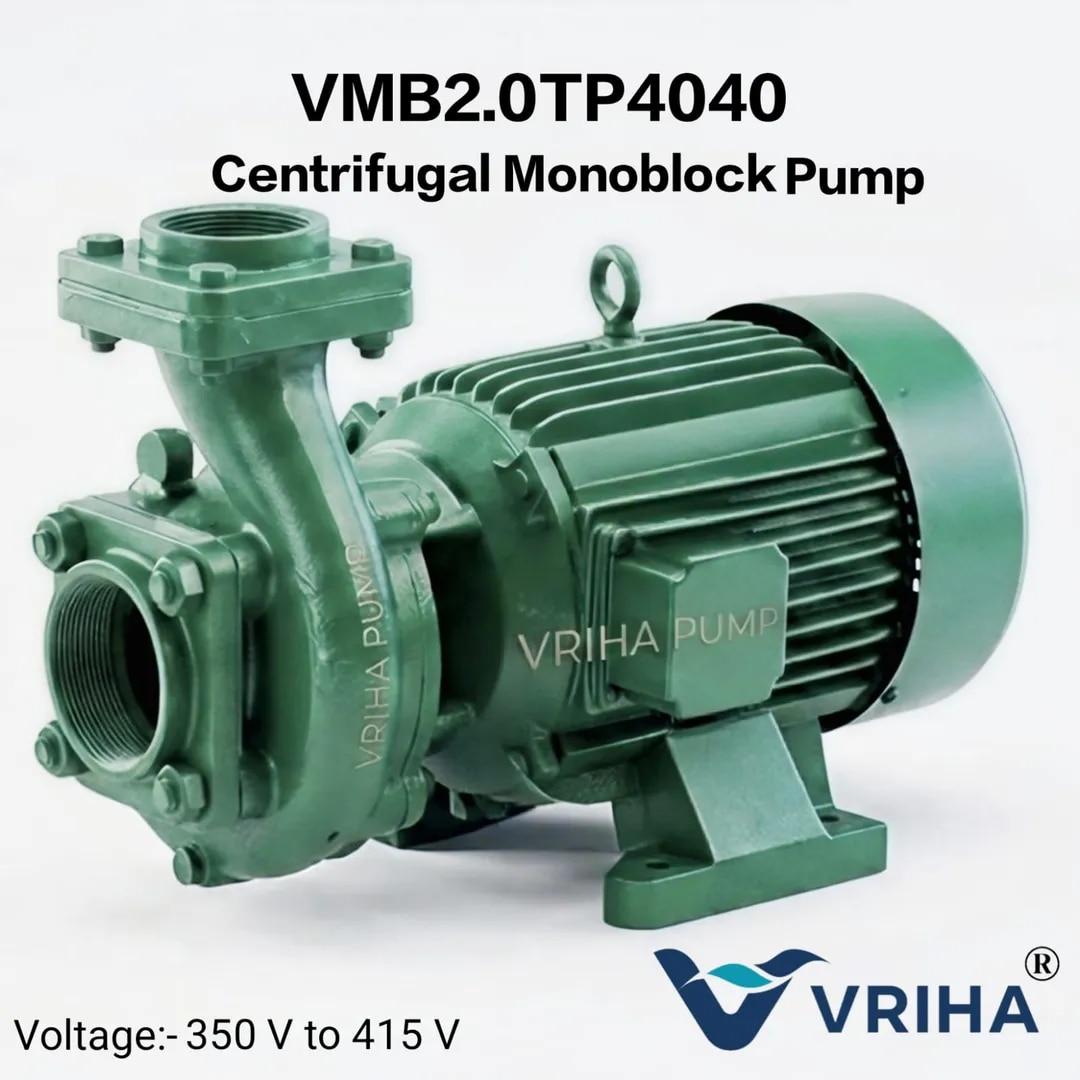

Vriha 2 HP Three Phase Monoblock Pump | 350-410V Centrifugal Water Pump | 40x40 MM l VMB2.0TP4040

Vriha VMB2.0TP4040 is a 2 HP three phase monoblock pump designed for water supply, agricultural irrigation, water transfer and domestic water pumping applications. This 2 HP three phase centrifugal water pump is designed for a 350-410 V supply, operates at 50 Hz and runs at 2880 RPM.

The VMB2.0TP4040 is a 40x40 MM centrifugal monoblock pump with a durable cast-iron (CI) pump body. It provides a duty head of 24 metres with a discharge of 190 LPM at the duty point and develops a maximum head of 30 metres.

The Vriha 2 HP three phase monoblock pump provides different discharge levels according to the required pumping head. At 14 metres head, the discharge is 265 LPM. At 16 metres, it is 255 LPM. At 18 metres, 240 LPM. At 20 metres, 230 LPM. At 22 metres, 205 LPM. At the 24 metre duty head, discharge is 190 LPM. At 26 metres, discharge is 160 LPM, and at 28 metres, discharge is 130 LPM. Maximum head is 30 metres.

This 2 HP centrifugal monoblock water pump is suitable for agricultural water pumping, farm irrigation, domestic water supply, overhead tank filling, water transfer between tanks and general water circulation. The three phase motor configuration makes the model suitable for installations where a three phase electrical supply is available.

VMB2.0TP4040 is designed with F Class insulation and IP44 protection and uses a mechanical seal. The 350-410 V operating range, 2 HP motor, 40x40 MM pump size, 24 metre duty head and 190 LPM duty discharge make this model suitable for customers looking for a 2 HP three phase water pump or 2 HP three phase monoblock pump.

Vriha Pump supplies centrifugal monoblock pumps for agricultural, domestic and general water pumping applications in Ahmedabad, Gujarat and across India. Select the pump according to required discharge, total head, pipe size, electrical supply and application conditions.

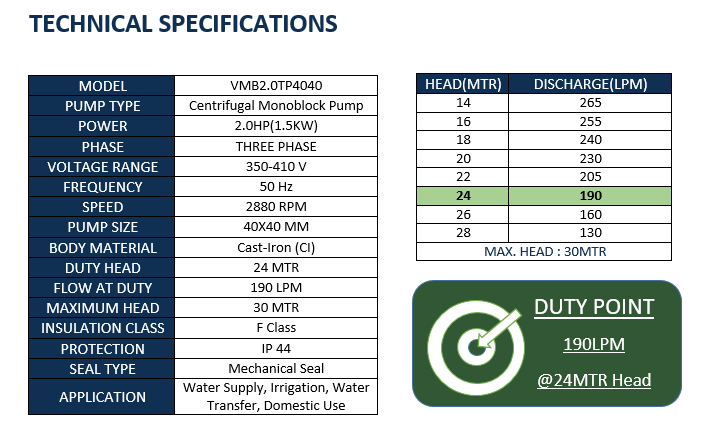

TECHNICAL SPECIFICATIONS

Model: VMB2.0TP4040

Pump Type: Centrifugal Monoblock Pump

Power: 2.0 HP (1.5 kW)

Phase: Three Phase

Voltage Range: 350-410 V

Frequency: 50 Hz

Speed: 2880 RPM

Pump Size: 40x40 MM

Body Material: Cast Iron (CI)

Duty Head: 24 MTR

Flow at Duty: 190 LPM

Maximum Head: 30 MTR

Insulation Class: F Class

Protection: IP44

Seal Type: Mechanical Seal

PERFORMANCE

14 MTR – 265 LPM

16 MTR – 255 LPM

18 MTR – 240 LPM

20 MTR – 230 LPM

22 MTR – 205 LPM

24 MTR – 190 LPM

26 MTR – 160 LPM

28 MTR – 130 LPM

Maximum Head – 30 MTR
