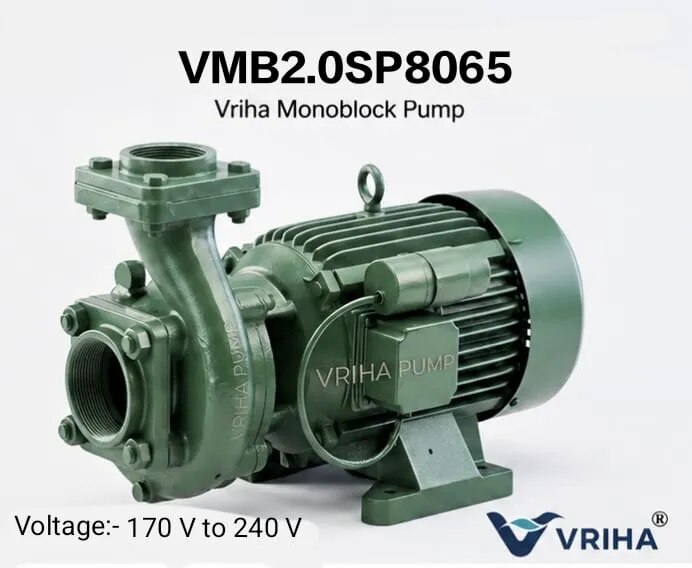

Vriha VMB2.0SP8065 – 2 HP Single Phase High Flow Monoblock Pump | 540 LPM | 80x65 MM (3x2.5")

Vriha VMB2.0SP8065 is a 2 HP single phase high flow centrifugal monoblock pump designed for agricultural irrigation, water transfer, farm water supply and domestic water supply applications. With an 80x65 MM (3x2.5 inch) pump size, this model is designed for high-volume water movement where higher flow is required at low to moderate head.

The VMB2.0SP8065 delivers 540 LPM flow at 12 MTR duty head and can deliver up to 730 LPM at 8 MTR head. Its maximum head is 18 MTR, making it suitable for irrigation, open water transfer, tank filling and other water supply applications.

The pump operates on single phase power with a voltage range of 170-240 V, 50 Hz frequency and 2880 RPM speed. The pump body is made from cast iron and is equipped with a mechanical seal. The motor is designed with F Class insulation and IP44 protection.

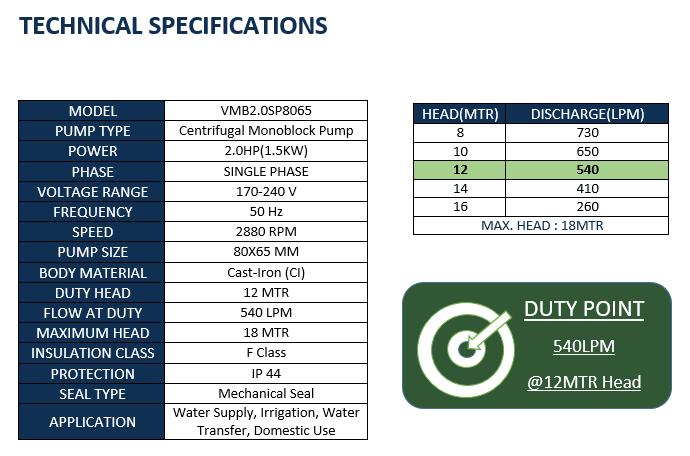

TECHNICAL DETAILS

Model: VMB2.0SP8065

Pump Type: Centrifugal Monoblock Pump

Power: 2.0 HP (1.5 kW)

Phase: Single Phase

Voltage Range: 170-240 V

Frequency: 50 Hz

Speed: 2880 RPM

Pump Size: 80x65 MM (3x2.5 Inch)

Body Material: Cast Iron (CI)

Duty Head: 12 MTR

Flow at Duty: 540 LPM

Maximum Head: 18 MTR

Insulation Class: F Class

Protection: IP44

Seal Type: Mechanical Seal

PUMP PERFORMANCE

At 8 MTR Head: 730 LPM

At 10 MTR Head: 650 LPM

At 12 MTR Head: 540 LPM

At 14 MTR Head: 410 LPM

At 16 MTR Head: 260 LPM

Maximum Head: 18 MTR

APPLICATIONS

Agricultural irrigation

Farm water supply

Field irrigation

Water transfer

Tank filling

Open water transfer

Domestic water supply

Garden irrigation

General water circulation

WHY CHOOSE VMB2.0SP8065

2 HP single phase centrifugal monoblock pump

High flow capacity up to 730 LPM

540 LPM flow at 12 MTR duty head

80x65 MM (3x2.5 Inch) pump size

170-240 V operating voltage range

2880 RPM high-speed operation

Cast iron pump body

Mechanical seal

F Class insulation

IP44 protection

This Vriha 2 HP high flow monoblock pump is suitable for applications where high water flow is required at relatively low to moderate pumping heads.
