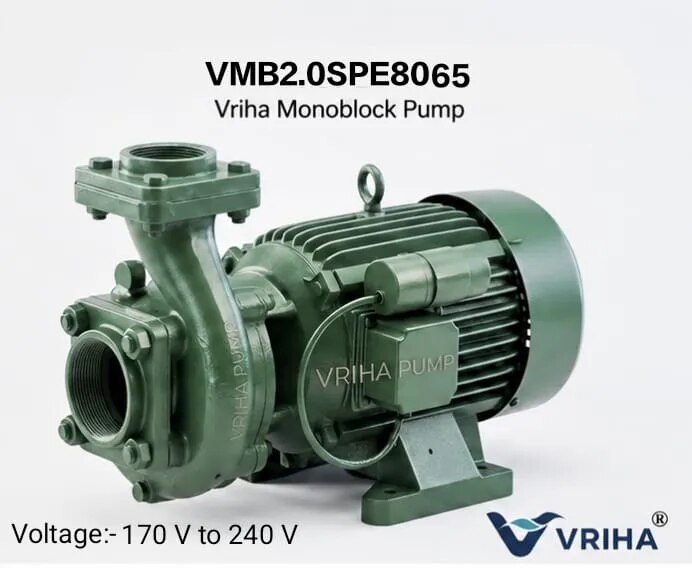

Vriha VMB2.0SPE8065 – 2 HP Economical Single Phase Monoblock Pump | 170-240V | 80x65 MM

Vriha VMB2.0SPE8065 is an economical 2 HP single phase centrifugal monoblock pump designed for water supply, agricultural irrigation, water transfer and domestic water applications. This model is developed for users looking for a practical and economical 2 HP single phase water pump with an 80x65 MM (3x2.5 Inch) pump size.

The VMB2.0SPE8065 operates on single phase power with a 170-240 V voltage range, 50 Hz frequency and 2880 RPM speed. Its 80x65 MM (3x2.5 Inch) pump size is suitable for applications requiring higher-volume water movement at low to moderate pumping heads.

The pump has a cast iron (CI) body and is equipped with a mechanical seal. It features F Class insulation and IP44 protection. The duty point is 490 LPM at 12 MTR head, while the maximum head is 18 MTR.

The pump performance includes 680 LPM at 8 MTR head, 600 LPM at 10 MTR, 490 LPM at 12 MTR, 360 LPM at 14 MTR and 210 LPM at 16 MTR. This performance range makes the VMB2.0SPE8065 suitable for different water supply and transfer requirements.

As an economical single phase 2 HP monoblock pump, VMB2.0SPE8065 is suitable for agricultural farms, irrigation systems, field water supply, domestic water supply, tank filling, water transfer, garden irrigation and general water circulation.

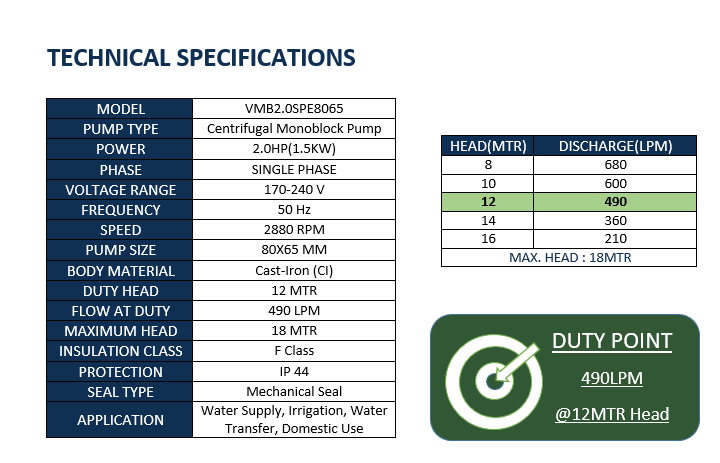

TECHNICAL SPECIFICATIONS

Model: VMB2.0SPE8065

Pump Type: Centrifugal Monoblock Pump

Power: 2.0 HP (1.5 kW)

Phase: Single Phase

Voltage Range: 170-240 V

Frequency: 50 Hz

Speed: 2880 RPM

Pump Size: 80x65 MM (3x2.5 Inch)

Body Material: Cast Iron (CI)

Duty Head: 12 MTR

Flow at Duty: 490 LPM

Maximum Head: 18 MTR

Insulation Class: F Class

Protection: IP44

Seal Type: Mechanical Seal

PERFORMANCE

8 MTR – 680 LPM

10 MTR – 600 LPM

12 MTR – 490 LPM

14 MTR – 360 LPM

16 MTR – 210 LPM

Maximum Head – 18 MTR

APPLICATIONS

Agricultural irrigation

Farm water supply

Field irrigation

Water supply

Water transfer

Tank filling

Domestic water supply

Garden irrigation

General water circulation

VMB2.0SPE8065 is a Vriha economical 2 HP single phase centrifugal monoblock pump designed to provide practical water pumping performance for agricultural, domestic and general water transfer applications.
