Vriha VMB2.0SPLV8065 – 2 HP Single Phase Low Voltage Monoblock Pump | 140-220V | 80x65 MM (3x2.5")

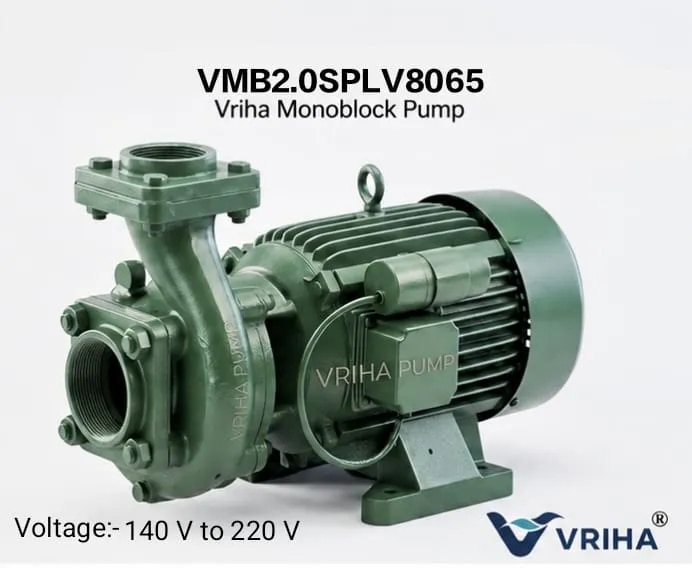

Vriha VMB2.0SPLV8065 is a 2 HP single phase centrifugal monoblock pump designed for water supply, agricultural irrigation, water transfer and domestic water supply applications. The pump is designed for a 140-220 V voltage range and operates at 50 Hz and 2880 RPM.

This Vriha 2 HP single phase monoblock pump features an 80x65 MM (3x2.5 Inch) pump size, cast iron pump body, mechanical seal, F Class insulation and IP44 protection. With a 12 MTR duty head and 540 LPM discharge at duty point, it is suitable for applications requiring high-volume water movement at low to moderate pumping heads.

The VMB2.0SPLV8065 performance range is 730 LPM at 8 MTR head, 650 LPM at 10 MTR, 540 LPM at 12 MTR, 410 LPM at 14 MTR and 260 LPM at 16 MTR. Maximum head is 18 MTR.

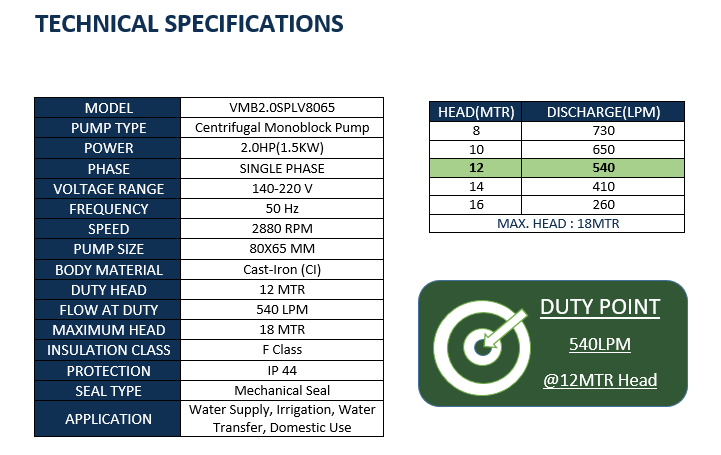

TECHNICAL SPECIFICATIONS

Model: VMB2.0SPLV8065

Pump Type: Centrifugal Monoblock Pump

Power: 2.0 HP (1.5 kW)

Phase: Single Phase

Voltage Range: 140-220 V

Frequency: 50 Hz

Speed: 2880 RPM

Pump Size: 80x65 MM (3x2.5 Inch)

Body Material: Cast Iron (CI)

Duty Head: 12 MTR

Flow at Duty: 540 LPM

Maximum Head: 18 MTR

Insulation Class: F Class

Protection: IP44

Seal Type: Mechanical Seal

PERFORMANCE

8 MTR Head – 730 LPM

10 MTR Head – 650 LPM

12 MTR Head – 540 LPM

14 MTR Head – 410 LPM

16 MTR Head – 260 LPM

Maximum Head – 18 MTR

APPLICATIONS

Agricultural irrigation

Farm water supply

Field irrigation

Water supply

Water transfer

Tank filling

Domestic water supply

Garden irrigation

General water circulation
