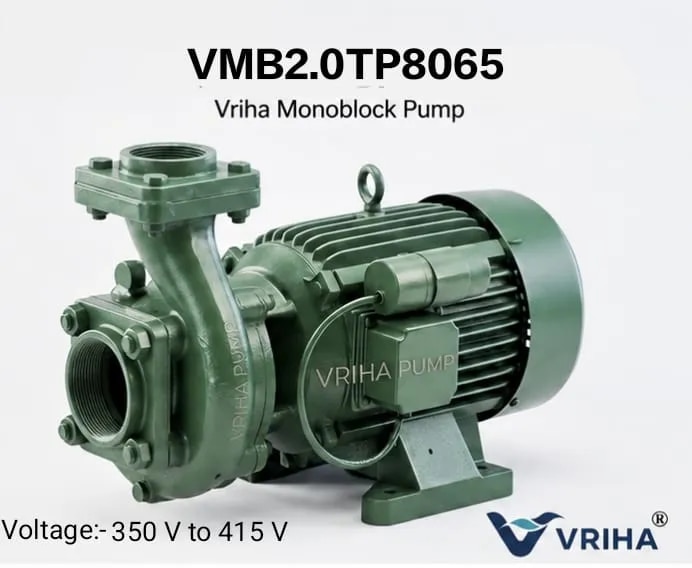

Vriha VMB2.0TP8065 – 2 HP Three Phase Monoblock Pump | 350-415V | 80x65 MM (3x2.5")

Vriha VMB2.0TP8065 is a 2 HP three phase centrifugal monoblock pump designed for agricultural irrigation, water supply, water transfer and domestic water applications. This 2 HP three phase monoblock pump operates on a 350-415 V power supply at 50 Hz frequency and 2880 RPM speed.

The VMB2.0TP8065 features an 80x65 MM (3x2.5 Inch) pump size and a cast iron (CI) pump body. It is equipped with a mechanical seal, F Class insulation and IP44 protection. The pump is designed for applications requiring high-volume water movement at low to moderate pumping heads.

The duty point of this Vriha 2 HP three phase water pump is 540 LPM at 12 MTR head, with a maximum head of 18 MTR. Its performance range is 730 LPM at 8 MTR head, 650 LPM at 10 MTR, 540 LPM at 12 MTR, 410 LPM at 14 MTR and 260 LPM at 16 MTR.

The 80x65 MM (3x2.5 Inch) pump size makes this model suitable for applications where a larger water passage and higher discharge are required. It can be used for agricultural irrigation, farm water supply, field irrigation, domestic water supply, tank filling, water transfer, garden irrigation and general water circulation.

TECHNICAL SPECIFICATIONS

Model: VMB2.0TP8065

Pump Type: Centrifugal Monoblock Pump

Power: 2.0 HP (1.5 kW)

Phase: Three Phase

Voltage Range: 350-415 V

Frequency: 50 Hz

Speed: 2880 RPM

Pump Size: 80x65 MM (3x2.5 Inch)

Body Material: Cast Iron (CI)

Duty Head: 12 MTR

Flow at Duty: 540 LPM

Maximum Head: 18 MTR

Insulation Class: F Class

Protection: IP44

Seal Type: Mechanical Seal

PERFORMANCE

8 MTR – 730 LPM

10 MTR – 650 LPM

12 MTR – 540 LPM

14 MTR – 410 LPM

16 MTR – 260 LPM

Maximum Head – 18 MTR

APPLICATIONS

Agricultural irrigation

Farm water supply

Field irrigation

Water supply

Water transfer

Tank filling

Domestic water supply

Garden irrigation

General water circulation
