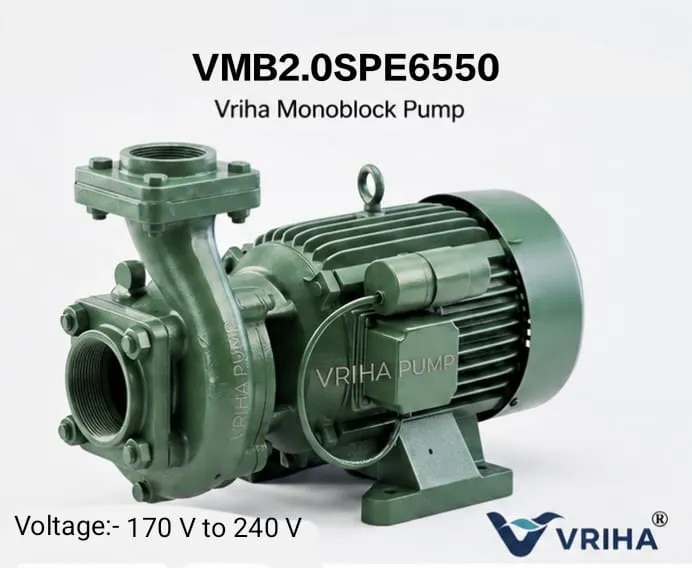

Vriha 2 HP Single Phase Eco Centrifugal Monoblock Pump 65x50 MM | VMB2.0SPE6550

Vriha VMB2.0SPE6550 is a 2 HP (1.5 kW) single phase centrifugal monoblock pump designed as an economical and practical solution for water supply, agricultural irrigation, water transfer and domestic water pumping applications. This Vriha 2 HP single phase water pump is developed for customers looking for a reliable centrifugal monoblock pump at a compatible and competitive price.

The VMB2.0SPE6550 operates on a 170–240 V voltage range, 50 Hz frequency and 2880 RPM speed. It features a 65x50 MM pump size with a robust Cast Iron (CI) body. At its specified duty point, the pump delivers 270 LPM flow at a 16 MTR head, with a maximum head of 20 MTR.

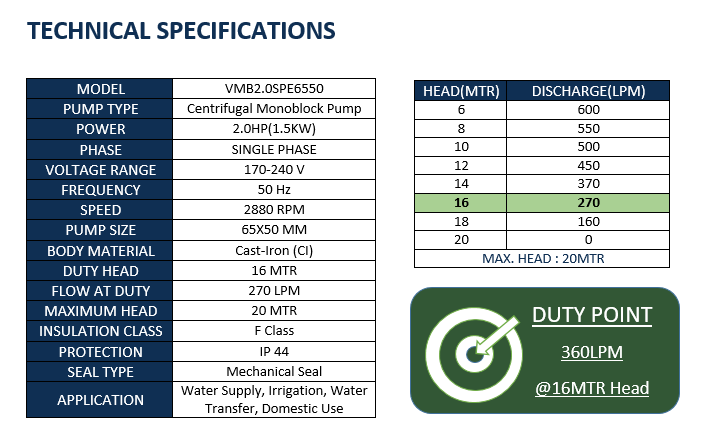

The pump provides different discharge capacities according to the operating head. Performance is approximately 600 LPM at 6 MTR head, 550 LPM at 8 MTR, 500 LPM at 10 MTR, 450 LPM at 12 MTR, 370 LPM at 14 MTR, 270 LPM at 16 MTR and 160 LPM at 18 MTR. The maximum head is 20 MTR. At 20 MTR head, the specified discharge is 0 LPM, indicating the maximum head condition. Actual field performance can vary depending on pipeline diameter, pipeline length, suction conditions, installation arrangement, voltage and system resistance.

Vriha VMB2.0SPE6550 is equipped with F Class insulation, IP44 protection and a mechanical seal. Its centrifugal monoblock construction combines the pump and motor into a compact assembly, providing a practical solution for installation and routine water pumping requirements.

This economical 2 HP single phase monoblock pump is suitable for agricultural farms, irrigation systems, domestic water supply, water transfer, overhead tank filling and general water pumping applications. It is a suitable choice for customers searching for a budget-friendly 2 HP water pump, 2 HP single phase centrifugal pump, economy monoblock pump, 170–240 V water pump or 65x50 MM centrifugal monoblock pump.

Model: VMB2.0SPE6550

Power: 2 HP / 1.5 kW

Phase: Single Phase

Voltage Range: 170–240 V

Frequency: 50 Hz

Speed: 2880 RPM

Pump Size: 65x50 MM

Body Material: Cast Iron (CI)

Duty Head: 16 MTR

Flow at Duty: 270 LPM

Maximum Head: 20 MTR

Insulation Class: F Class

Protection: IP44

Seal Type: Mechanical Seal
