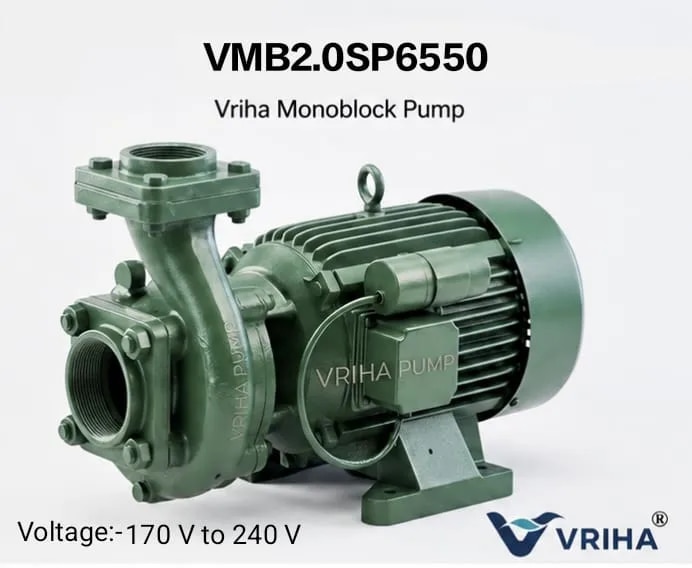

Vriha 2 HP Single Phase High Flow Monoblock Pump | 360 LPM | 65x50 MM l VMB2.0SP6550

Vriha VMB2.0SP6550 is a 2 HP (1.5 kW) single phase centrifugal monoblock pump designed for high-flow water supply, agricultural irrigation, water transfer and domestic water pumping applications. This 2 HP single phase monoblock pump delivers 360 LPM at a 16 metre duty head and develops a maximum head of 22 metres.

The VMB2.0SP6550 operates on 170-240 V, 50 Hz supply and runs at 2880 RPM. Its 65x50 MM pump size provides high water discharge for applications where a higher flow rate is required from a 2 HP water pump. The pump has a durable cast-iron (CI) body and is designed for reliable water pumping applications.

Vriha VMB2.0SP6550 provides different discharge according to the operating head. At 6 metres head, the discharge is 625 LPM; at 8 metres, 590 LPM; at 10 metres, 540 LPM; at 12 metres, 490 LPM; at 14 metres, 440 LPM; and at the 16 metre duty head, the discharge is 360 LPM. At 18 metres head, the discharge is 260 LPM, while at 20 metres it is 150 LPM. The maximum head is 22 metres.

This Vriha 2 HP high-flow monoblock pump is suitable for agricultural irrigation, farm water pumping, domestic water supply, overhead tank filling, water transfer between tanks and general water circulation. The 65x50 MM centrifugal pump configuration is particularly suitable for applications where higher discharge is required at moderate pumping heads.

The VMB2.0SP6550 features F Class insulation, IP44 protection and a mechanical seal. With 2 HP power, single phase operation, 170-240 V voltage range, 2880 RPM speed, 65x50 MM pump size, 16 metre duty head and 360 LPM duty discharge, this model is suitable for customers looking for a 2 HP high-flow water pump, 2 HP single phase monoblock pump or centrifugal monoblock pump.

Vriha Pump supplies centrifugal monoblock pumps for agricultural, domestic and general water pumping applications in Ahmedabad, Gujarat and across India. Select the pump according to required discharge, total head, pipe size, electrical supply and application conditions.

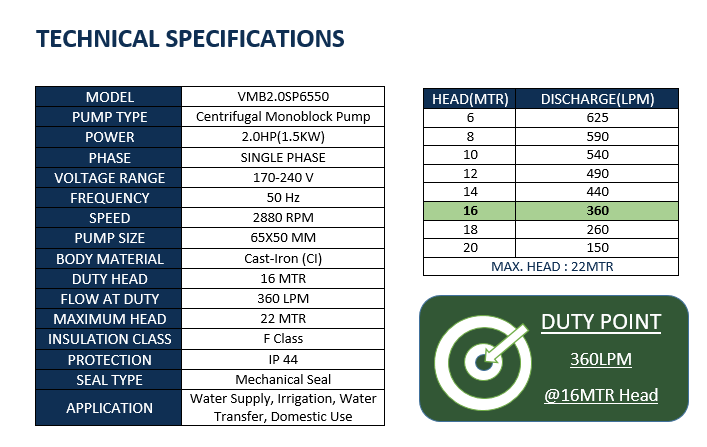

TECHNICAL SPECIFICATIONS

Model: VMB2.0SP6550

Pump Type: Centrifugal Monoblock Pump

Power: 2.0 HP (1.5 kW)

Phase: Single Phase

Voltage Range: 170-240 V

Frequency: 50 Hz

Speed: 2880 RPM

Pump Size: 65x50 MM

Body Material: Cast Iron (CI)

Duty Head: 16 MTR

Flow at Duty: 360 LPM

Maximum Head: 22 MTR

Insulation Class: F Class

Protection: IP44

Seal Type: Mechanical Seal

PERFORMANCE

6 MTR – 625 LPM

8 MTR – 590 LPM

10 MTR – 540 LPM

12 MTR – 490 LPM

14 MTR – 440 LPM

16 MTR – 360 LPM

18 MTR – 260 LPM

20 MTR – 150 LPM

Maximum Head – 22 MTR

Vriha VMB2.0SP6550 2 HP high-flow monoblock pump is suitable for agricultural irrigation, farm water supply, field irrigation, domestic water supply, residential water pumping, overhead tank filling, underground tank to overhead tank transfer, water transfer between storage tanks, garden irrigation and general water circulation. With 360 LPM discharge at 16 metre duty head and a 65x50 MM pump size, it is suitable for applications requiring higher water flow at moderate pumping head.

APPLICATIONS

Agricultural Irrigation

Farm Water Supply

Field Irrigation

Domestic Water Supply

Residential Water Supply

Overhead Tank Filling

Underground Tank to Overhead Tank

Water Transfer Between Tanks

Agricultural Water Transfer

Water Storage Tank Filling

Bungalow and House Water Supply

Society and Residential Water Supply

Garden and Landscape Irrigation

Small Farm Irrigation

Water Circulation

General Water Transfer
