Vriha 2 HP Single & Two Phase Wide Voltage Monoblock Pump – 140–420 V | VMB2.0SPDPXX5050
Description

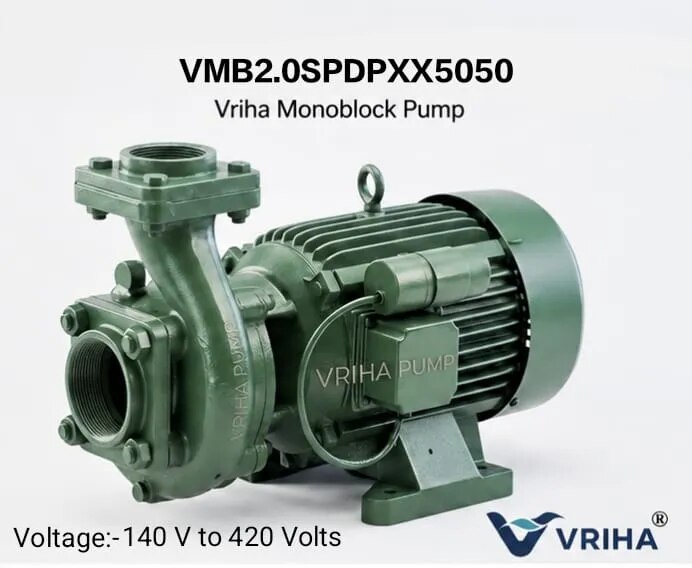

Vriha VMB2.0SPDPXX5050 – 2 HP Single & Two Phase Wide Voltage Monoblock Pump
Vriha VMB2.0SPDPXX5050 is a 2 HP (1.5 kW) centrifugal monoblock pump designed to operate on both single-phase and two-phase power supply, with a wide 140–420 V voltage range. It is developed for applications where flexible power-supply operation and a wide voltage range are important for reliable water pumping.
WIDE VOLTAGE RANGE: 140–420 V
The key advantage of this Vriha wide voltage range monoblock pump is its 140–420 V operating range. The pump is designed to work on both single-phase and two-phase power supply, also commonly referred to as double-phase power supply, providing greater flexibility for suitable pumping applications.

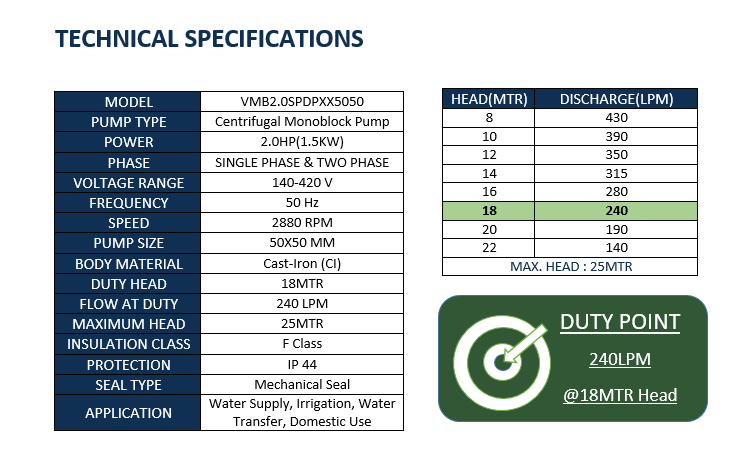

TECHNICAL SPECIFICATIONS
Model: VMB2.0SPDPXX5050
Pump Type: Centrifugal Monoblock Pump
Power: 2 HP / 1.5 kW
Phase: Single Phase & Two Phase
Voltage Range: 140–420 V
Frequency: 50 Hz
Speed: 2880 RPM
Pump Size: 50 × 50 mm
Body Material: Cast Iron (CI)
Duty Head: 18 Meter
Flow at Duty: 240 LPM
Maximum Head: 23 Meter
Insulation Class: F Class
Protection: IP44
Seal Type: Mechanical Seal
HEAD-FLOW PERFORMANCE
8 Meter Head – 430 LPM
10 Meter Head – 390 LPM
12 Meter Head – 350 LPM
14 Meter Head – 315 LPM
16 Meter Head – 280 LPM
18 Meter Head – 240 LPM
20 Meter Head – 180 LPM
22 Meter Head – 90 LPM
Duty Point: 240 LPM @ 18 Meter Head
Maximum Head: 23 Meter
APPLICATIONS
Agricultural Irrigation
Farm Water Transfer
Garden Irrigation
Water Supply
Overhead Tank Filling
Domestic Water Transfer
General Water Transfer
WHY CHOOSE VRIHA VMB2.0SPDPXX5050?
Wide 140–420 V voltage range
Single-phase & two-phase operation
2 HP / 1.5 kW motor
50 × 50 mm pump size
Robust cast iron construction
2880 RPM operation
18 Meter duty head
240 LPM flow at duty
F-Class insulation
IP44 protection
Mechanical seal construction
The Vriha VMB2.0SPDPXX5050 is designed for customers looking for a 2 HP single & two phase wide voltage range monoblock pump that can deliver reliable water flow across practical pumping conditions.
this model most suitable for agriculture because of this pump run in single phase as well as two phase.
VRIHA MONOBLOCK PUMP
Designed for dependable water delivery in agriculture, irrigation, water transfer, and domestic water-supply applications.
Specifications
| MODEL NO. | VMB2.0SPDPXX5050 |
|---|---|
| APPLICATION | Water Supply, Irrigation, Water Transfer, Domestic Use |
| SPEED | 2880 RPM |
| SEAL TYPE | Mechanical Seal |
| FLOW AT DUTY | 240 LPM |
| INSULATION CLASS | F Class |
| DUTY HEAD | 18MTR |
| PROTECTION | IP 44 |
| MAXIMUM HEAD | 25MTR |
| PUMP SIZE | 50X50 MM |
| MAXIMUM HEAD | 25MTR |
| BODY MATERIAL | Cast-Iron (CI) |
| PROTECTION | IP 44 |
| SEAL TYPE | Mechanical Seal |
| APPLICATION | Water Supply, Irrigation, Water Transfer, Domestic Use |
| INSULATION CLASS | F Class |
| PUMP TYPE | Centrifugal Monoblock Pump |
| FREQUENCY | 50 Hz |
| VOLTAGE RANGE | 140-420 V |
| POWER | 2.0HP(1.5KW) |
| PHASE | SINGLE PHASE & TWO PHASE |
