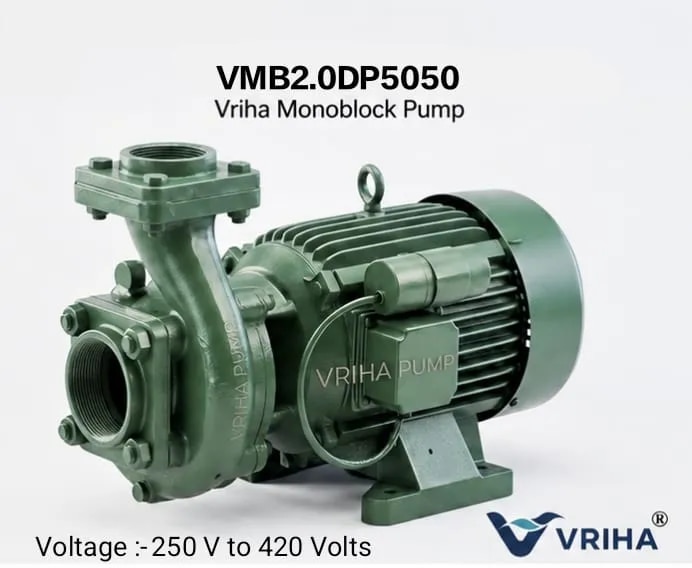

Vriha 2 HP Two Phase (Double Phase) Wide Voltage Monoblock Pump – 250–420 V | VMB2.0DP5050
Description
Vriha VMB2.0DP5050 is a 2 HP (1.5 kW) centrifugal monoblock pump specially designed for Two Phase, also commonly searched as Double Phase, power supply. With a wide 250–420 V voltage range, this Vriha pump is designed for water-pumping applications where a suitable two-phase electrical supply is available.
WIDE 250–420 V VOLTAGE RANGE
The key advantage of the VMB2.0DP5050 is its 250–420 V wide voltage operating range. This makes it a suitable choice for customers looking for a 2 HP wide voltage monoblock pump designed for two-phase or double-phase power supply.
TWO PHASE / DOUBLE PHASE PUMP
VMB2.0DP5050 is specifically designed for Two Phase power supply. The term Double Phase Pump is also commonly used by customers searching for this type of electrical configuration. Vriha provides this model for applications requiring a dedicated two-phase pumping solution.
2 HP CENTRIFUGAL MONOBLOCK PUMP
The VMB2.0DP5050 delivers 2 HP (1.5 kW) power and operates at 2880 RPM. It features a 50×50 mm pump size and robust Cast-Iron (CI) construction for dependable water pumping applications.
DUTY PERFORMANCE
The specified duty point is 240 LPM at 18 Meter head, with a maximum head of 23 Meter. The performance is the same as the Vriha VMB2.0SPDP5050 model.
HEAD-FLOW PERFORMANCE
8 Meter Head – 430 LPM
10 Meter Head – 390 LPM
12 Meter Head – 350 LPM
14 Meter Head – 315 LPM
16 Meter Head – 280 LPM
18 Meter Head – 240 LPM
20 Meter Head – 180 LPM
22 Meter Head – 90 LPM
APPLICATIONS
Vriha VMB2.0DP5050 is suitable for agricultural irrigation, farm water transfer, water supply, tank filling, domestic water transfer and general-purpose water pumping applications where a compatible two-phase power supply is available.
WHY CHOOSE VMB2.0DP5050?
• 2 HP / 1.5 kW power
• Two Phase / Double Phase power supply
• Wide 250–420 V voltage range
• 2880 RPM operation
• 50×50 mm pump size
• Cast-Iron (CI) body
• 18 Meter duty head
• 240 LPM flow at duty
• 23 Meter maximum head
• Same hydraulic performance as VMB2.0SPDP5050
Vriha VMB2.0DP5050 is designed for customers looking for a 2 HP Two Phase or Double Phase Wide Voltage Monoblock Pump with dependable water delivery and a 250–420 V operating range.

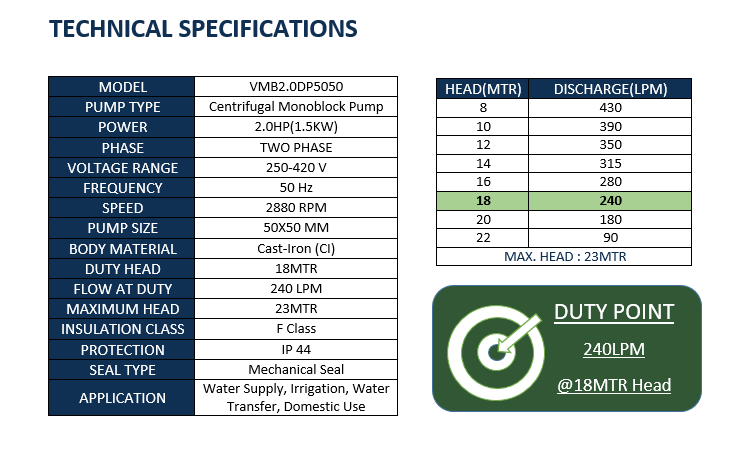

Specifications
| MODEL | VMB2.0DP5050 |
|---|---|
| FREQUENCY | 50 Hz |
| VOLTAGE RANGE | 250-420 V |
| PUMP TYPE | Centrifugal Monoblock Pump |
| PHASE | TWO PHASE |
| POWER | 2.0HP(1.5KW) |
| SPEED | 2880 RPM |
| APPLICATION | Water Supply, Irrigation, Water Transfer, Domestic Use |
| INSULATION CLASS | F Class |
| SEAL TYPE | Mechanical Seal |
| PUMP SIZE | 50X50 MM |
| MAXIMUM HEAD | 23MTR |
| BODY MATERIAL | Cast-Iron (CI) |
| FLOW AT DUTY | 240 LPM |
| PROTECTION | IP 44 |
| DUTY HEAD | 18MTR |
