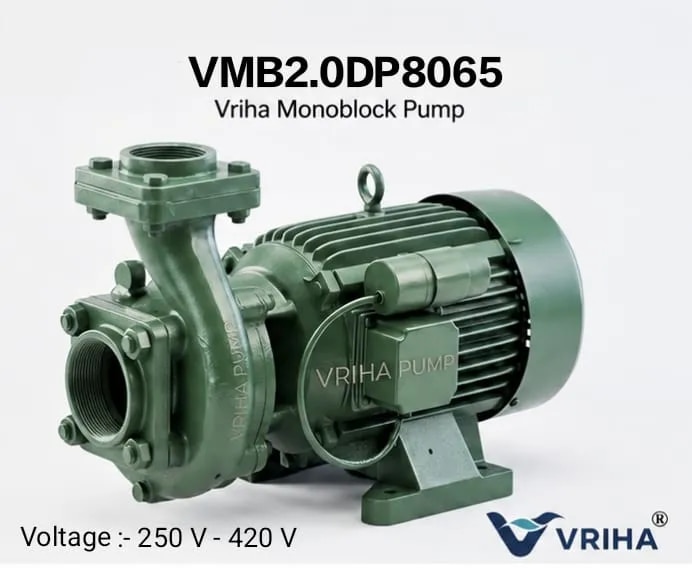

Vriha VMB2.0DP8065 – 2 HP Two Phase (Double Phase) Monoblock Pump | 250-420V | 80x65 MM

Vriha VMB2.0DP8065 is a 2 HP two phase (double phase) centrifugal monoblock pump designed for water supply, agricultural irrigation, water transfer and domestic water applications. This model is specifically designed for two phase (double phase) electrical operation and is suitable for applications where a two phase power supply is available.

The Vriha VMB2.0DP8065 operates within a 250-420 V voltage range at 50 Hz frequency and 2880 RPM speed. The pump features an 80x65 MM (3x2.5 Inch) pump size and a cast iron (CI) body. It is equipped with a mechanical seal, F Class insulation and IP44 protection.

This 2 HP two phase monoblock pump has a duty head of 12 MTR and delivers 540 LPM at the duty point. The pump performance is 730 LPM at 8 MTR head, 650 LPM at 10 MTR, 540 LPM at 12 MTR, 410 LPM at 14 MTR and 260 LPM at 16 MTR. The maximum head is 18 MTR.

VMB2.0DP8065 is suitable for agricultural irrigation, farm water supply, field irrigation, water transfer, tank filling, domestic water supply, garden irrigation and general water circulation. Its 80x65 MM (3x2.5 Inch) pump size makes it suitable for applications requiring a higher-volume water passage and high water discharge.

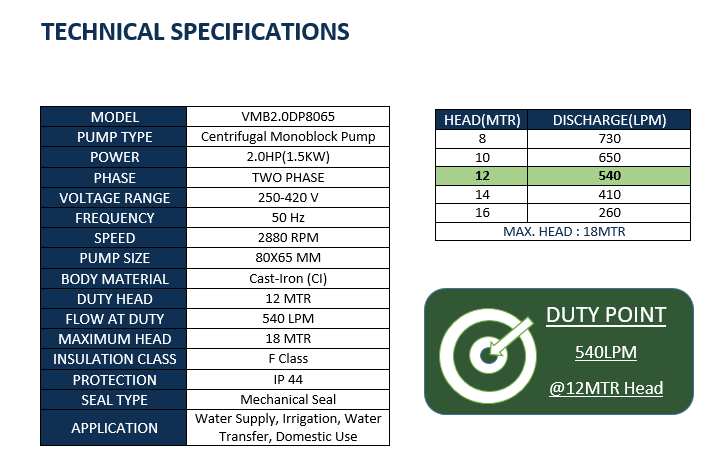

TECHNICAL SPECIFICATIONS

Model: VMB2.0DP8065

Pump Type: Centrifugal Monoblock Pump

Power: 2.0 HP (1.5 kW)

Phase: Two Phase (Double Phase)

Voltage Range: 250-420 V

Frequency: 50 Hz

Speed: 2880 RPM

Pump Size: 80x65 MM (3x2.5 Inch)

Body Material: Cast Iron (CI)

Duty Head: 12 MTR

Flow at Duty: 540 LPM

Maximum Head: 18 MTR

Insulation Class: F Class

Protection: IP44

Seal Type: Mechanical Seal

PERFORMANCE

8 MTR – 730 LPM

10 MTR – 650 LPM

12 MTR – 540 LPM

14 MTR – 410 LPM

16 MTR – 260 LPM

Maximum Head – 18 MTR

APPLICATIONS

Agricultural irrigation

Farm water supply

Field irrigation

Water supply

Water transfer

Tank filling

Domestic water supply

Garden irrigation

General water circulation

VMB2.0DP8065 is a Vriha 2 HP two phase (double phase) centrifugal monoblock pump designed for high-volume water pumping applications with a 250-420 V operating range and 80x65 MM (3x2.5 Inch) pump size.
