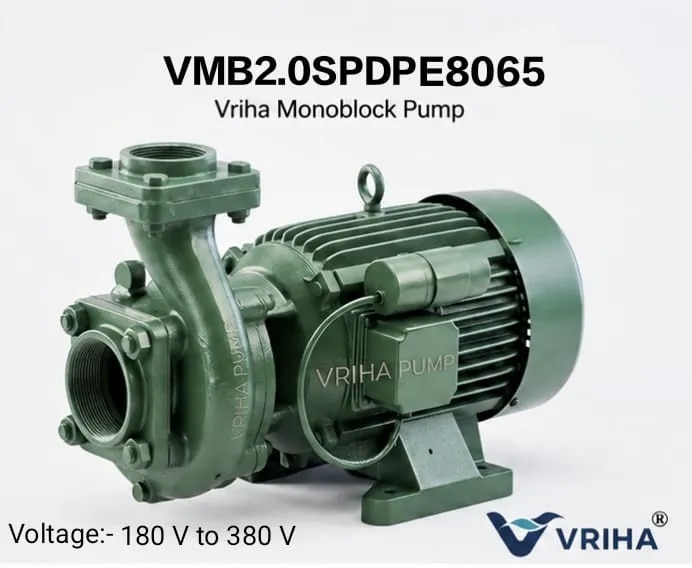

Vriha VMB2.0SPDPE8065 – 2 HP ECO Single & Two Phase Monoblock Pump | 180-380V | 80x65 MM

Vriha VMB2.0SPDPE8065 is an economical 2 HP single phase and two phase (double phase) centrifugal monoblock pump designed for water supply, agricultural irrigation, water transfer and domestic water applications. The main speciality of this ECO model is its ability to operate on both single phase and two phase (double phase) electrical supply, providing greater flexibility where different types of electrical supply are available.

The VMB2.0SPDPE8065 operates within a 180-380 V voltage range at 50 Hz frequency and 2880 RPM. This Vriha 2 HP ECO monoblock pump features an 80x65 MM (3x2.5 Inch) pump size and a cast iron (CI) body. It is equipped with a mechanical seal, F Class insulation and IP44 protection.

The pump has a duty head of 12 MTR and delivers 490 LPM at the duty point. Its performance range is 680 LPM at 8 MTR head, 600 LPM at 10 MTR, 490 LPM at 12 MTR, 360 LPM at 14 MTR and 210 LPM at 16 MTR. The maximum head is 18 MTR.

The single phase and two phase (double phase) operating capability makes this ECO model different from a conventional single phase monoblock pump. It is suitable for agricultural farms, irrigation systems, field water supply, domestic water supply, tank filling, water transfer, garden irrigation and general water circulation.

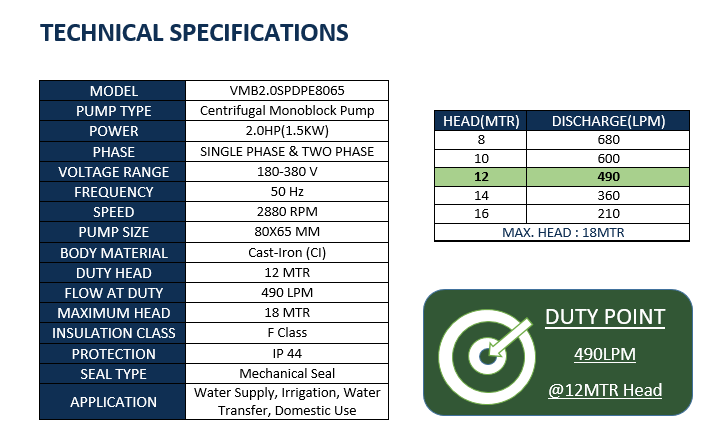

TECHNICAL SPECIFICATIONS

Model: VMB2.0SPDPE8065

Pump Type: Centrifugal Monoblock Pump

Power: 2.0 HP (1.5 kW)

Phase: Single Phase & Two Phase (Double Phase)

Voltage Range: 180-380 V

Frequency: 50 Hz

Speed: 2880 RPM

Pump Size: 80x65 MM (3x2.5 Inch)

Body Material: Cast Iron (CI)

Duty Head: 12 MTR

Flow at Duty: 490 LPM

Maximum Head: 18 MTR

Insulation Class: F Class

Protection: IP44

Seal Type: Mechanical Seal

PERFORMANCE

8 MTR – 680 LPM

10 MTR – 600 LPM

12 MTR – 490 LPM

14 MTR – 360 LPM

16 MTR – 210 LPM

Maximum Head – 18 MTR

APPLICATIONS

Agricultural irrigation

Farm water supply

Field irrigation

Water supply

Water transfer

Tank filling

Domestic water supply

Garden irrigation

General water circulation

VMB2.0SPDPE8065 is a Vriha ECO 2 HP monoblock pump designed to provide economical pumping with the flexibility of single phase and two phase (double phase) operation.
