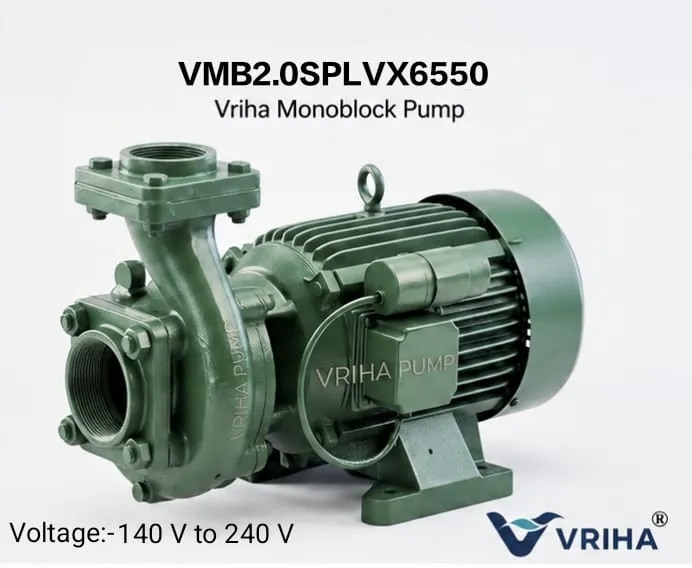

Vriha 2 HP Single Phase Wide Voltage Centrifugal Monoblock Pump 65x50 MM | VMB2.0SPLVX6550

Vriha VMB2.0SPLVX6550 is a 2 HP (1.5 kW) single phase centrifugal monoblock pump designed for reliable water supply, agricultural irrigation, water transfer and domestic water pumping applications. A key feature of this Vriha 2 HP single phase water pump is its 140–240 V wide voltage operating range, making it suitable for locations where supply voltage can fluctuate during normal operation.

The VMB2.0SPLVX6550 operates at 50 Hz frequency and 2880 RPM speed. It is designed with a 65x50 MM pump size and a robust Cast Iron (CI) body for regular water pumping applications. At the specified duty point, the pump delivers 360 LPM discharge at an 18 MTR head, with a maximum head of 24 MTR.

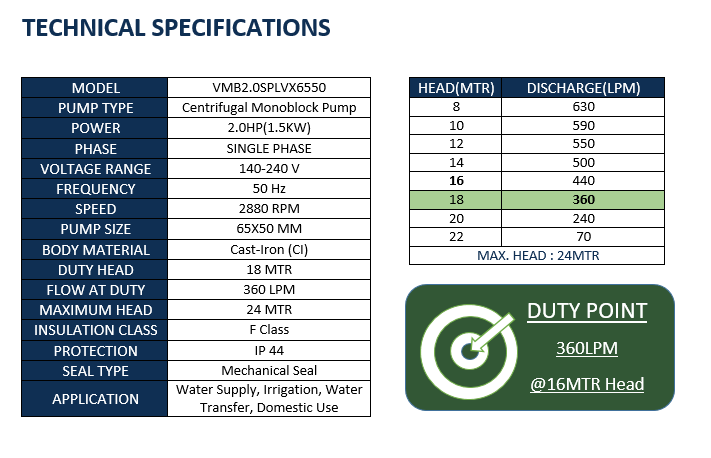

The hydraulic performance changes according to the operating head. The pump delivers approximately 630 LPM at 8 MTR head, 590 LPM at 10 MTR, 550 LPM at 12 MTR, 500 LPM at 14 MTR, 440 LPM at 16 MTR, 360 LPM at 18 MTR, 240 LPM at 20 MTR and 70 LPM at 22 MTR head. The maximum head is 24 MTR. Actual field performance can vary depending on pipeline length, pipe diameter, suction conditions, installation arrangement, voltage and system resistance.

The Vriha 2 HP centrifugal monoblock pump features F Class insulation, IP44 protection and a mechanical seal. Its compact monoblock construction integrates the pump and motor assembly, making it convenient for installation and routine maintenance.

This 2 HP single phase pump is suitable for agricultural farms, irrigation systems, domestic water supply, water transfer, overhead tank filling and general water pumping requirements. It is a practical choice for users searching for a 2 HP single phase monoblock pump, 2 HP centrifugal water pump, wide voltage water pump, 140–240 V pump or 65x50 MM monoblock pump.

Model: VMB2.0SPLVX6550

Power: 2 HP / 1.5 kW

Phase: Single Phase

Voltage Range: 140–240 V

Frequency: 50 Hz

Speed: 2880 RPM

Pump Size: 65x50 MM

Body Material: Cast Iron (CI)

Duty Head: 18 MTR

Flow at Duty: 360 LPM

Maximum Head: 24 MTR

Insulation Class: F Class

Protection: IP44

Seal Type: Mechanical Seal
