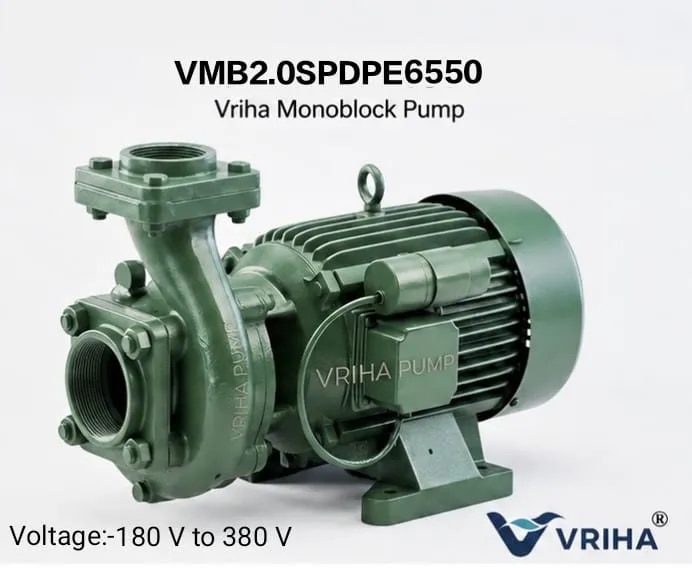

Vriha 2 HP Single & Two Phase Eco Centrifugal Monoblock Pump 65x50 MM | VMB2.0SPDPE6550

Vriha VMB2.0SPDPE6550 is a 2 HP (1.5 kW) centrifugal monoblock pump designed to operate with both single phase and two phase electrical supply. This dual-phase capability is the key advantage of the model, providing greater flexibility for users whose available electrical supply may vary between single phase and two phase. With a 180–380 V operating range, this Vriha 2 HP pump is designed as an economical and practical solution for water supply, agricultural irrigation, water transfer and domestic water pumping applications.

The VMB2.0SPDPE6550 operates at 50 Hz frequency and 2880 RPM speed. It features a 65x50 MM pump size and robust Cast Iron (CI) body. At the specified duty point, the pump delivers 270 LPM flow at a 16 MTR head and provides a maximum head of 20 MTR.

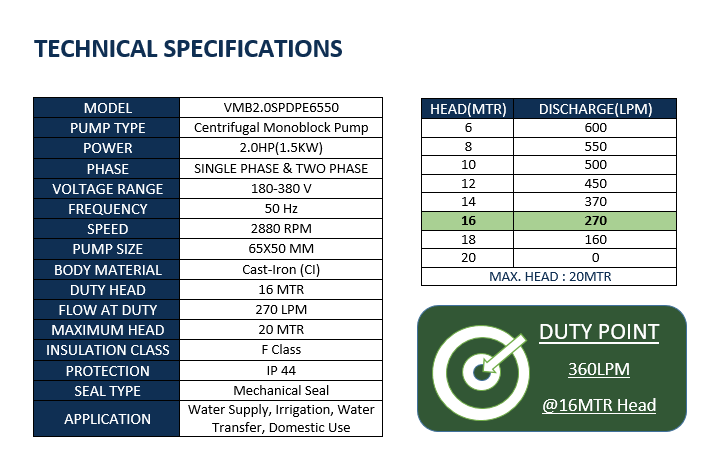

The pump performance varies according to the operating head. It delivers approximately 600 LPM at 6 MTR head, 550 LPM at 8 MTR, 500 LPM at 10 MTR, 450 LPM at 12 MTR, 370 LPM at 14 MTR, 270 LPM at 16 MTR and 160 LPM at 18 MTR head. At 20 MTR head, the specified discharge is 0 LPM, representing the maximum head condition. Actual field performance may vary depending on pipeline diameter, pipeline length, suction conditions, installation arrangement, voltage and system resistance.

Vriha VMB2.0SPDPE6550 is equipped with F Class insulation, IP44 protection and a mechanical seal. Its centrifugal monoblock construction combines the pump and motor in a compact assembly, making it a practical choice for installation and routine maintenance.

This economical 2 HP pump is suitable for agricultural farms, irrigation systems, domestic water supply, water transfer, overhead tank filling and general water pumping applications. It is particularly suitable for customers looking for a flexible 2 HP single phase and two phase water pump, 2 HP centrifugal monoblock pump, 180–380 V pump, economy water pump or 65x50 MM monoblock pump.

Model: VMB2.0SPDPE6550

Power: 2 HP / 1.5 kW

Phase: Single Phase & Two Phase

Voltage Range: 180–380 V

Frequency: 50 Hz

Speed: 2880 RPM

Pump Size: 65x50 MM

Body Material: Cast Iron (CI)

Duty Head: 16 MTR

Flow at Duty: 270 LPM

Maximum Head: 20 MTR

Insulation Class: F Class

Protection: IP44

Seal Type: Mechanical Seal
