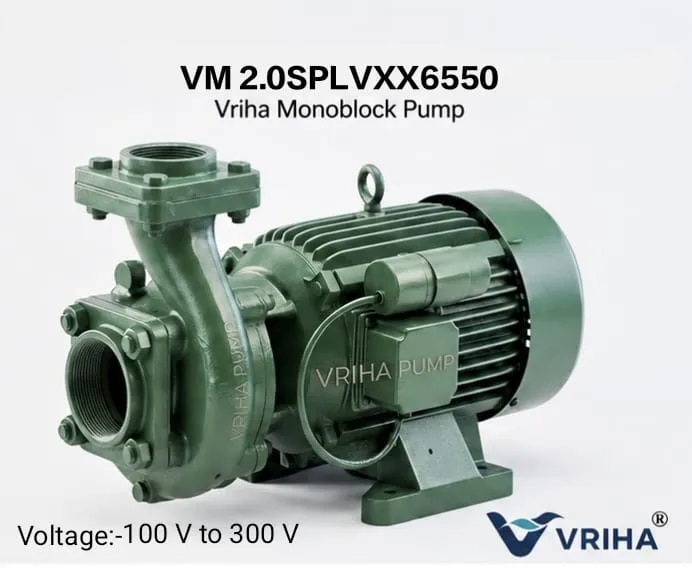

Vriha 2 HP Single & Two Phase Wide Voltage Pump 140-420V | Centrifugal Monoblock | VMB2.0SPDPXX6550

Vriha VMB2.0SPDPXX6550 is a special 2 HP (1.5 kW) centrifugal monoblock pump designed to operate on both single phase and two phase (double phase) electrical supply. This dual-phase operating capability gives the pump greater flexibility compared with conventional single-phase water pumps. With a wide 140–420 V voltage range, the Vriha 2 HP pump is designed for applications where electrical supply conditions can vary and a flexible pumping solution is required.

The VMB2.0SPDPXX6550 operates at 50 Hz frequency and 2880 RPM speed. It features a 65x50 MM pump size and robust Cast Iron (CI) body for dependable water pumping applications. At the specified duty point, the pump delivers 360 LPM flow at an 18 MTR head. The maximum head is 24 MTR.

The pump performance varies according to the operating head. It delivers approximately 630 LPM at 8 MTR head, 590 LPM at 10 MTR, 550 LPM at 12 MTR, 500 LPM at 14 MTR, 440 LPM at 16 MTR, 360 LPM at 18 MTR, 240 LPM at 20 MTR and 70 LPM at 22 MTR head. The maximum head is 24 MTR. Actual field performance may vary depending on voltage, pipeline diameter, pipeline length, suction conditions, installation arrangement and system resistance.

Vriha VMB2.0SPDPXX6550 is equipped with F Class insulation, IP44 protection and a mechanical seal. Its centrifugal monoblock construction combines the pump and motor into a compact assembly, providing a practical solution for installation and routine maintenance.

This special 2 HP pump is suitable for agricultural irrigation, farm water supply, domestic water supply, water transfer, overhead tank filling and general water pumping applications. It is particularly suitable for users searching for a 2 HP single phase and two phase pump, 2 HP double phase water pump, 140–420 V wide voltage pump, 2 HP centrifugal monoblock pump or 65x50 MM water pump.

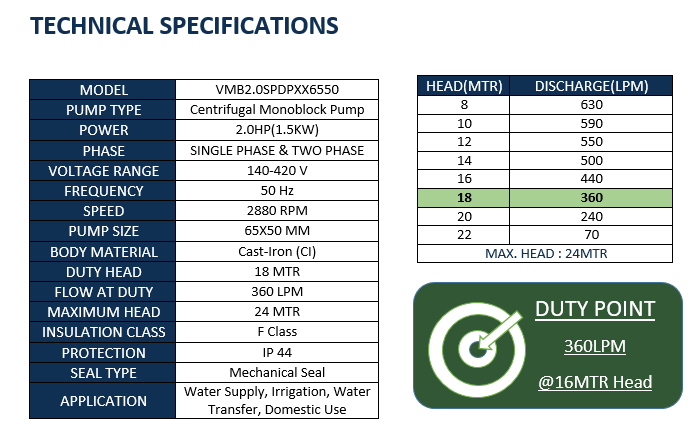

Model: VMB2.0SPDPXX6550

Power: 2 HP / 1.5 kW

Phase: Single Phase & Two Phase (Double Phase)

Voltage Range: 140–420 V

Frequency: 50 Hz

Speed: 2880 RPM

Pump Size: 65x50 MM

Body Material: Cast Iron (CI)

Duty Head: 18 MTR

Flow at Duty: 360 LPM

Maximum Head: 24 MTR

Insulation Class: F Class

Protection: IP44

Seal Type: Mechanical Seal
